Overview

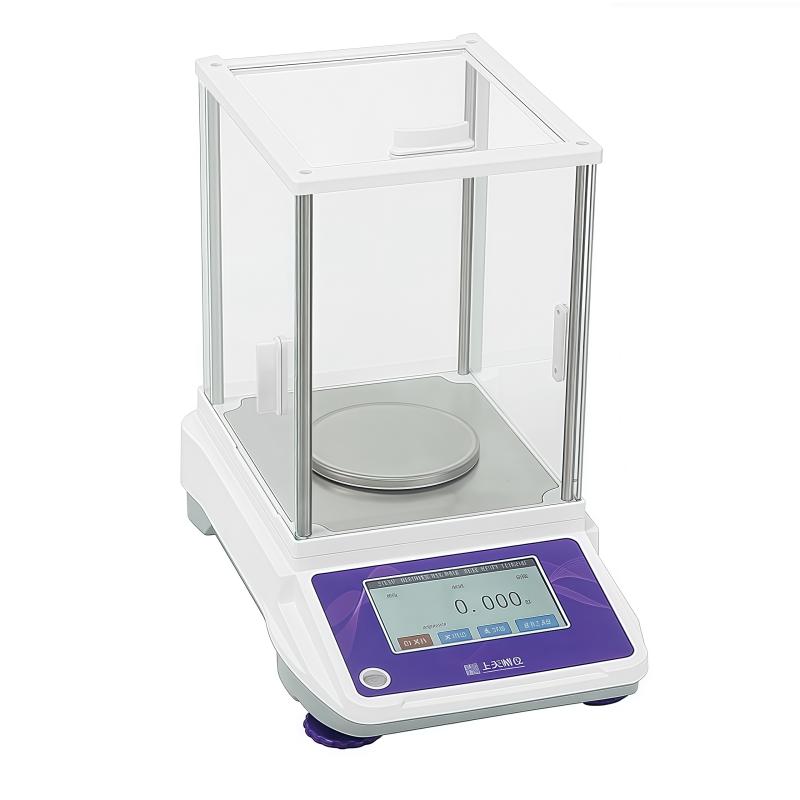

Electronic Balance is a High Accuracy weighing device, Capacity 320g, readability accuracy 0.1mg, using a new generation of electromagnetic force Sensor technology, equipped with a 5-inch color TFT touch display, supports a variety of weighing units and data interfaces, suitable for precision weighing occasions such as laboratories.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. Fully automatic internal calibrating for external calibrating or time and temperature triggering (AE-C series)
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
Using Electromagnetic Force Sensor technology, High Accuracy weighing is realized through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the gravity of the item, so as to accurately measure the mass of the item.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V1A)
3. Turn it on and warm up and wait for the system to stabilize.
4. Select the weighing unit as needed (mg/g/ct/oz, etc.)
5. Place the item to be tested gently in the center of the pan (φ 90mm)
6. Read the weighing results on the display
7. If peeling is required, use the full range peeling function
8. Data can be transferred by connecting to a computer through the RS232 interface
Notice
• Ambient Temperature should be kept within 10~ 30 ℃
• Avoid use in strong electromagnetic interference environments
• Balance is adjusted horizontally before weighing
• Do not exceed Capacity 320g
• Clean the pan immediately after use
• Protect Sensor Device During Transportation
Periodically calibrated to ensure accuracy
