Overview

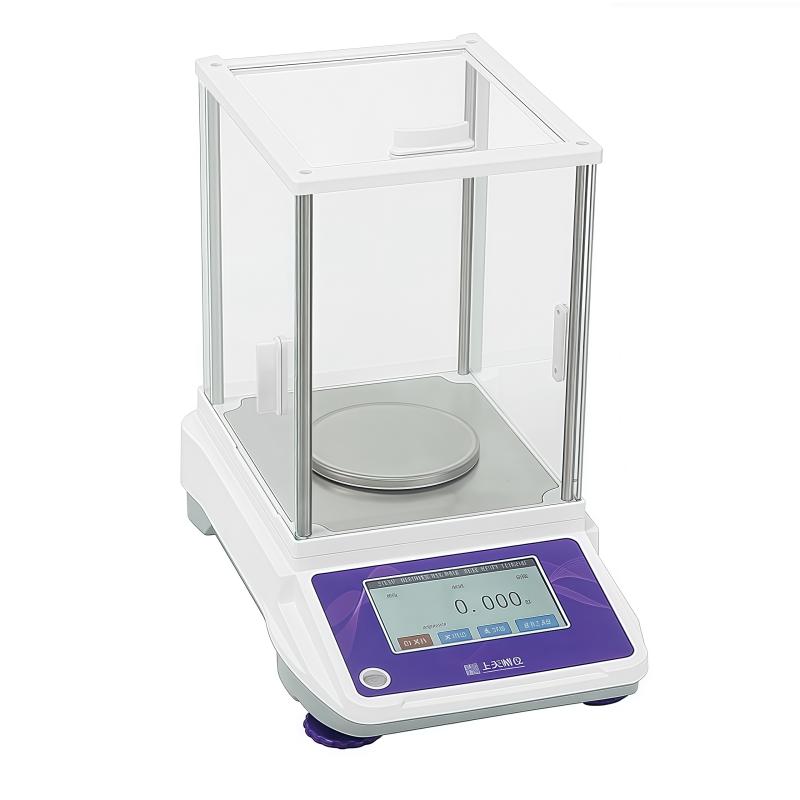

Shangtian Jingyi AE324C 1/10,000 Electronic Balance is a High Accuracy weighing equipment, Capacity 320g, readability accuracy 0.1mg, using a new generation of electromagnetic force Sensor to ensure stable and reliable weighing. Equipped with a 5-inch color TFT touch display, it supports glove operation to meet the needs of laboratory environment use.
Features
1. New Generation High Accuracy Electromagnetic Force Sensor Provides Stable and Reliable Weighing Results
2.5-Inch color TFT touch display supports operation with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel
9. Built-in date and time display function meets traceability and compliance requirements
10. Power Adapter supports 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses a new generation of High Accuracy Electromagnetic Force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the item weight, and converts it into a digital signal through a precision circuit for display on the Touchscreen.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Turn on the Power Adapter and turn on the device
3. Select the weighing unit and language interface on the Touchscreen as needed
4. After waiting for the equipment to self-check and stabilize, place the items to be weighed in the center of the pan with care
5. Read the weighing results on the display
6. If you need to peel, press the peel function button and weigh it again.
7. Turn off the power after use and clean the pan
Notice
• Please place the Balance on a stable, vibration-free countertop for use
• Be sure to adjust it to a horizontal state through a horizontal bubble before use
• Avoid use in strong electromagnetic interference environments
• Weighed items must not exceed Capacity 320g
• Keep the pan clean and avoid contact with corrosive substances
• Sensor protection should be enabled during transportation
• Ambient Temperature should be kept within 10~ 30 ℃
• Regularly calibrated to ensure weighing accuracy
