Overview

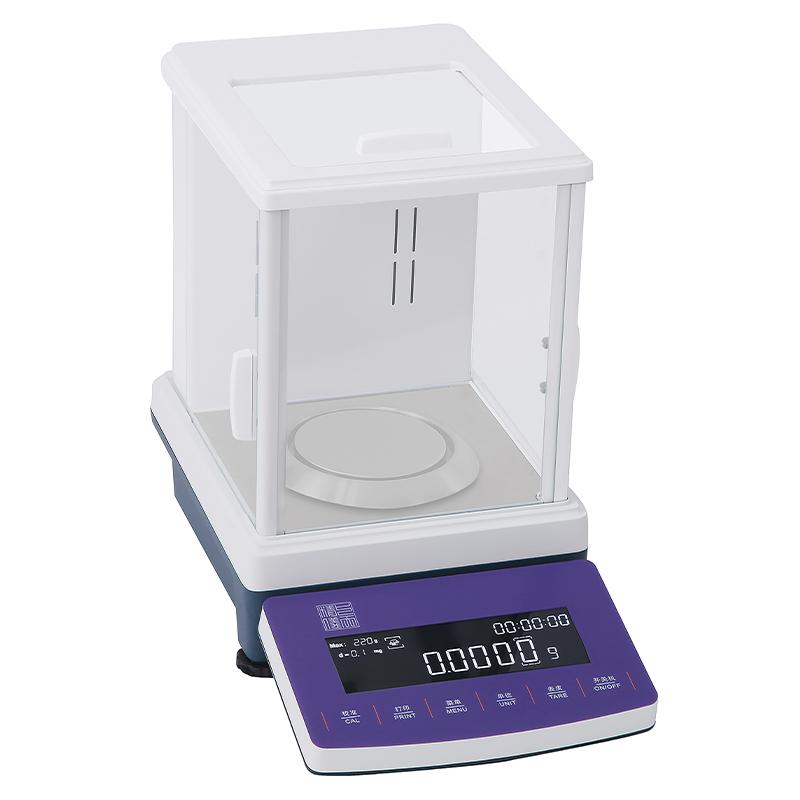

AB124C Electronic Balance is a High Accuracy weighing device with a Capacity of 120g and a readability accuracy of 0.1mg. It adopts a new generation of electromagnetic force Sensor and OLED backlit display, supports a variety of weighing units and interfaces, and is suitable for precision weighing scenarios such as laboratories.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure weighing accuracy
6. Lower hook design to meet special application requirements
7. Standard RS232 and USB interface, optional PC-STWC function to transfer data directly to Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
Using Electromagnetic Force Sensor technology, High Accuracy Weighing is realized through the principle of electromagnetic force equilibrating. When the item is placed in the pan, the Sensor generates electromagnetic force equilibrating with the item gravity, and accurately calculates the item mass by measuring the electromagnetic force.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Steps
1. Place the Balance on a smooth table and connect the Power Adapter
2. Boot and warm up to a stable state
3. Select the weighing unit as required
4. Place the item to be weighed in the center of the pan
5. Read the stable value on the display
6. Turn off and clean the equipment after use
Notice
• Avoid use in strong airflow or vibration environment
• Capacity of weighing items must not exceed 120g
Periodically calibrated to ensure accuracy
• Keep the pan clean to avoid contamination affecting the results
• Power frequency 110V-240V
• Pay attention to the correct installation of Draft Shield during operation
• Disconnect the power supply when not in use for a long time
