Overview

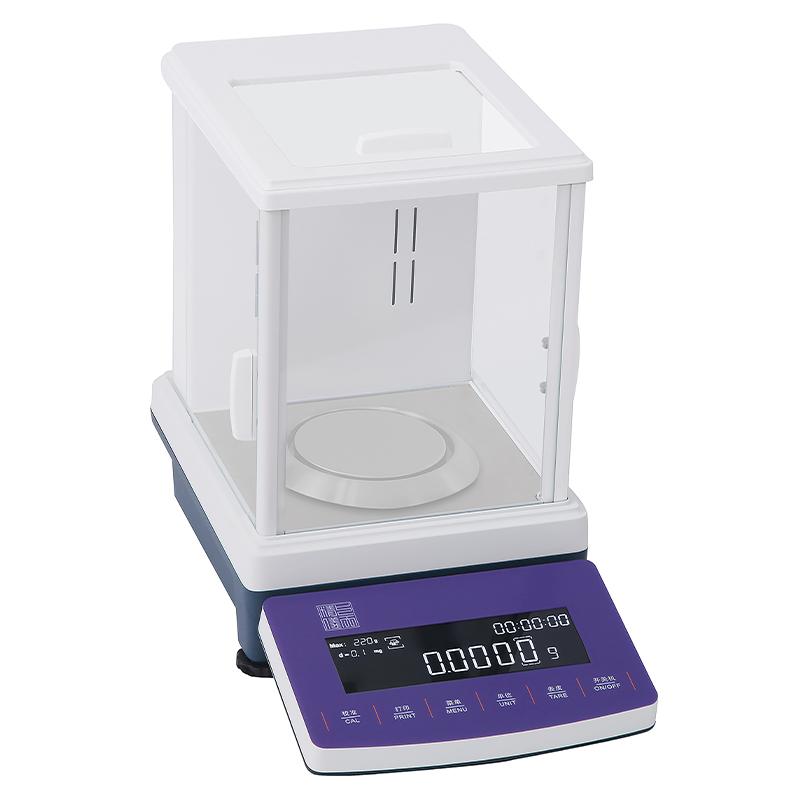

AB224C Electronic Balance is a High Accuracy weighing device with Capacity 220g and readability accuracy 0.1mg. It adopts a new generation of electromagnetic force Sensor technology to ensure stable and reliable weighing results. The product is equipped with an OLED backlit display, which supports a variety of weighing units and interfaces, and is suitable for precision weighing scenarios such as laboratories.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses electromagnetic force Sensor technology to achieve accurate weighing through the principle of equilibrating electromagnetic force and gravity. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate gravity, and the system detects and calculates the magnitude of the electromagnetic force to obtain the exact weight value.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter (input 110-240V, output 9V 2A)
3. Turn it on and warm up and wait for the system to stabilize.
4. Internal or external calibrating as required
5. Place the item to be weighed on the pan (φ 90mm)
6. Read the weight data on the display
7. Data can be transferred to the computer via RS232 or USB interface
8. Turn off the power after use
Notice
• Balance in a stable, vibration-free environment
• Use temperature range should be kept between 10 ℃ -30 ℃
• Avoid use in strong electromagnetic interference environments
• Regularly calibrated to ensure weighing accuracy
• Please use a soft cloth when cleaning to avoid liquids entering the equipment
• Disconnect the power supply when not in use for a long time
• Please handle with care when handling to avoid violent vibration
