Overview

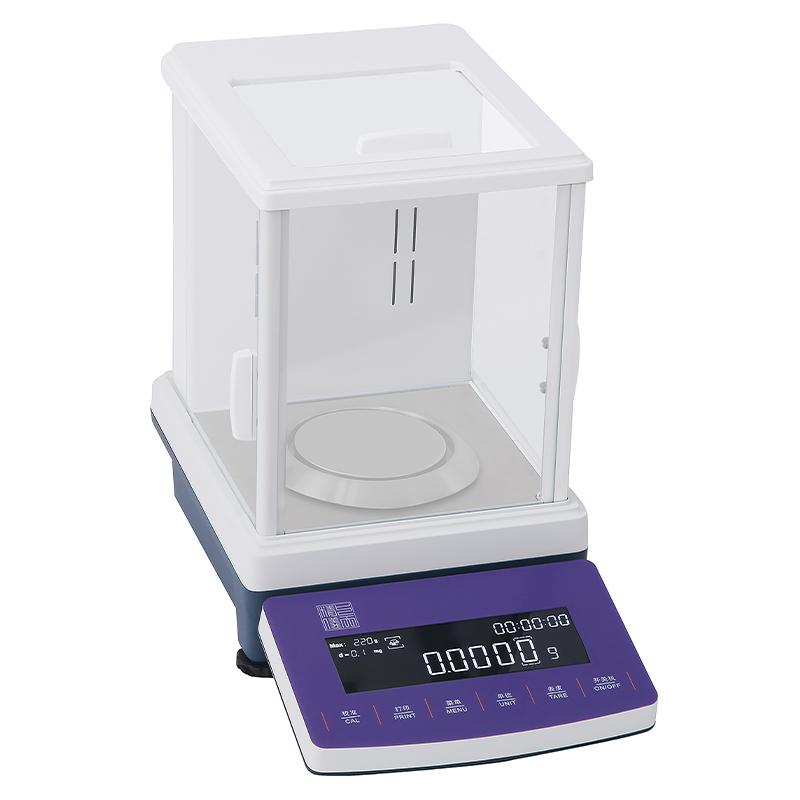

AB324C Electronic Balance is a High Accuracy weighing device with a Capacity of 320g and readability accuracy of 0.1mg. It adopts a new generation of electromagnetic force Sensor and OLED backlit display, supports a variety of weighing units and interfaces, and is suitable for precision weighing occasions such as laboratories.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses Electromagnetic Force Sensor technology to achieve High Accuracy Weighing through the principle of electromagnetic force equilibrating. When the item is placed in the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the item weight and converts it into a digital signal display through an internal processing system.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter (input 110-240V, output 9V 2A)
Preheat the machine to a stable state
4. Select the weighing unit as required
5. Place the item to be weighed in the pan (φ 90mm)
6. Read the weighing results on the display
7. Data can be transferred via RS232 or USB interface
Notice
• Operating Environment Temperature should be kept within the range of 10 ℃ -30 ℃
• Make sure the work surface is smooth and avoid vibration interference
• Need to calibrate before use
• Pay attention to the correct use of Draft Shield to eliminate static effects
Regular cleaning of pan and Draft Shield
• Avoid overloading, Capacity is 320g
• Power Adapter input voltage range is 110-240V
