Overview

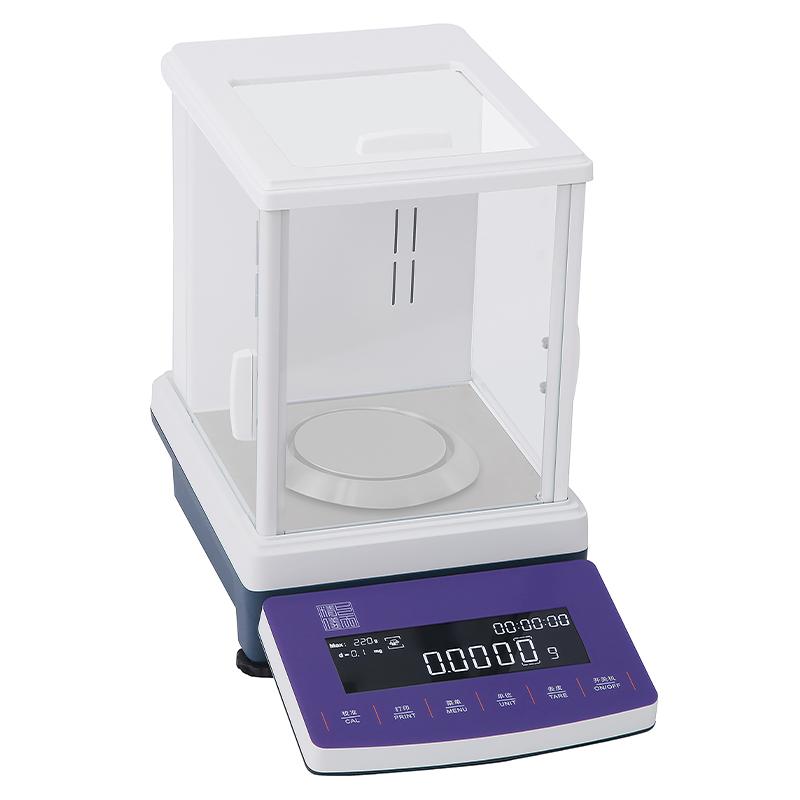

AB524C Electronic Balance is a High Accuracy weighing equipment, Capacity 520g, readability accuracy 0.1mg, using a new generation of electromagnetic force Sensor technology to ensure stable and reliable weighing results.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The electromagnetic force Sensor technology is used to achieve accurate weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the weight of the item and converts it into a digital display through the electronic system.
Applications
Laboratory, pharmaceutical, chemical, food, jewelry, education and research
Steps
1. Place Balance on a Stable Workbench
2. Connect the Power Adapter
3. Boot warm-up
4. Perform calibrating operation (can choose external calibrating or automatic internal calibrating)
5. Place items to be weighed on the pan
6. Read the weighing results on the display
7. Data can be transferred via RS232 or USB interface
Notice
• Balance in a smooth and vibration-free environment before use
• Avoid use in strong electromagnetic interference environments
Periodically calibrated to ensure measurement accuracy
• Use the adapted Power Adapter (Input: 110-240V 0.6A 50/60Hz; Output: 9V 2A)
• Operating temperature range should be maintained at 10 ℃ -30 ℃
• Avoid liquids from entering the equipment when cleaning
• Disconnect the power supply when not in use for a long time
