Overview

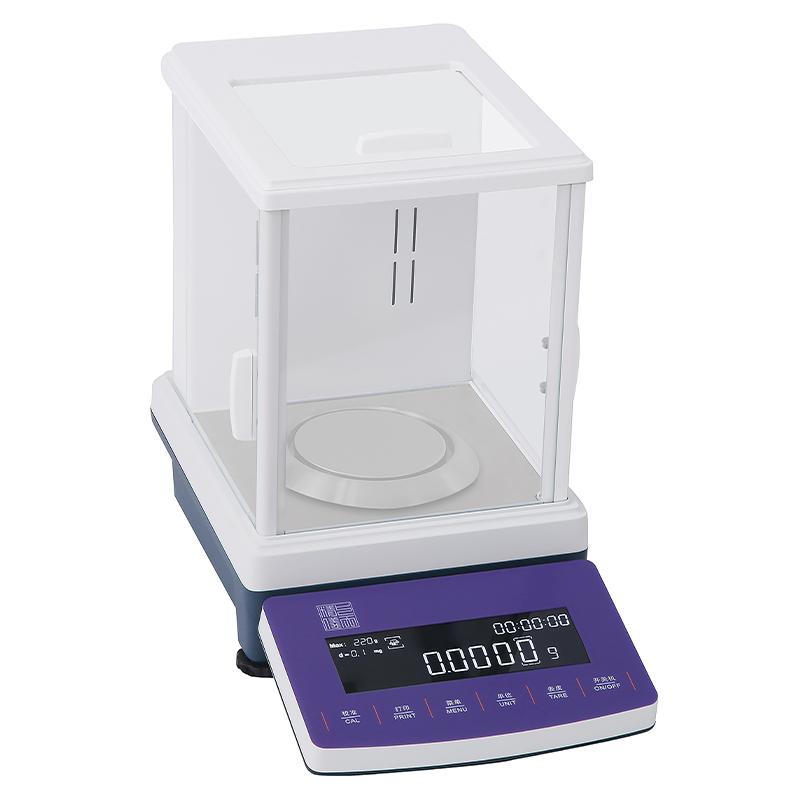

Electronic Balance is a High Accuracy weighing device with a Capacity of 120g and readability accuracy of 0.1mg. It adopts a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The product is equipped with an ultra-clear OLED backlit display, which supports a variety of weighing units and interface connections, and is suitable for precision weighing scenarios such as laboratories.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. External calibrating function
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses electromagnetic force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the item gravity, calculates the item mass by measuring the magnitude of the electromagnetic force, and displays it digitally on the OLED screen.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn on and warm up to a stable state
4. Externally calibrated operation
5. Place the test item in the center of the pan
6. Read the weighing results on the display
7. Data can be transferred to the computer via RS232 or USB interface
8. Turn off the power after use
Notice
• Balance in a stable, vibration-free environment
• Need to calibrate before use to ensure accuracy
• Avoid use in environments where the temperature exceeds the range of 10 ° C -30 ° C
• Turn off Draft Shield when weighing to reduce airflow interference
• Do not exceed the Capacity limit of 120g
• Keep the pan clean to avoid contamination affecting the weighing results
• Make sure the voltage matches when using the adapter for power supply
• Please disconnect the power connection when not in use for a long time
