Overview

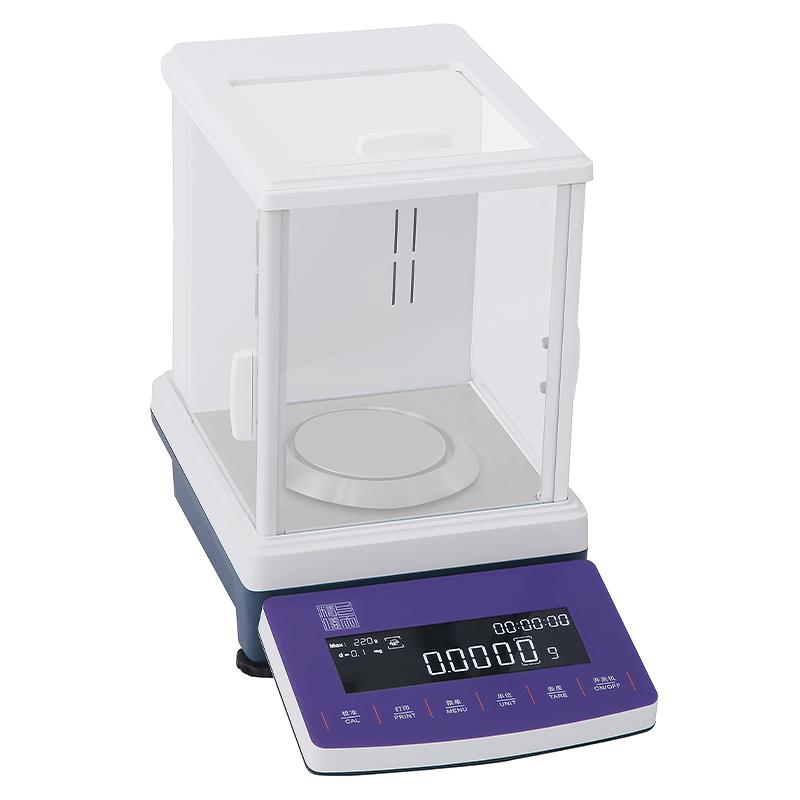

Electronic Balance is a High Accuracy weighing device with Capacity 220g and readability accuracy of 0.1mg. It uses a new generation of electromagnetic force Sensor technology, equipped with ultra-clear OLED backlit display, supports external calibrate and a variety of weighing units to meet the precise weighing needs of the laboratory.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation with laboratory gloves
3. External calibrating function
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure weighing accuracy
6. Lower hook design to meet special application requirements
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
Using electromagnetic force Sensor technology, accurate weighing is achieved through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates electromagnetic force equilibrating with the item gravity, and calculates the item mass by measuring the electromagnetic force.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Standards
Meet traceability and compliance requirements
Steps
Step 1 Place Balance on a Smooth Table
2. Connect the Power Adapter
3. Boot warm-up
4. Externally calibrated
5. Place items to be weighed in the pan
6. Read the weighing results on the display
7. Data can be transferred via RS232 or USB interface
Notice
• Please place the Balance on a stable, vibration-free countertop for use
• Need to calibrate before use
• Turn off Draft Shield when weighing to ensure accuracy
• Avoid use in environments where the temperature exceeds the range of 10 ° C -30 ° C
Regular cleaning of pan and Draft Shield
• Use the specified Power Adapter, input voltage 110-240V
• Disconnect the power supply when not in use for a long time
