Overview

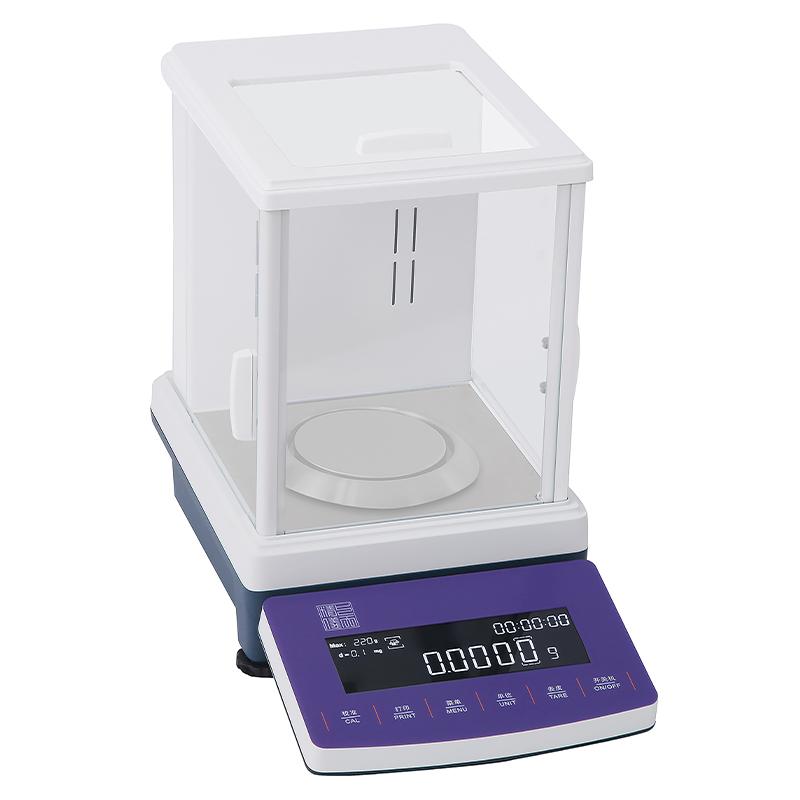

Electronic Balance is a High Accuracy weighing device with Capacity 520g and readability accuracy of 0.1mg. It adopts a new generation of electromagnetic force Sensor technology, is equipped with ultra-clear OLED backlight display, supports a variety of weighing units and interface connections, and is suitable for precision weighing occasions such as laboratories.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation with laboratory gloves
3. External calibrating function
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure weighing accuracy
6. Lower hook design to meet special application requirements
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
Using Electromagnetic Force Sensor technology, High Accuracy weighing is achieved through the principle of electromagnetic force equilibrating. When the item is placed in the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the item weight and converts it into a digital signal display through the electronic system.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical analysis, mass testing
Steps
1. Place the Balance on a smooth table and connect the Power Adapter
2. Boot and warm up to a stable state
3. Select the weighing unit as required
4. Place the item to be weighed in the center of the pan
5. Read the weighing results on the display
6. Use peeling function to deduct container weight
7. Transfer data to external devices via RS232 or USB interface
Notice
• Preheat to a stable state before use
Ensure Balance is Placed on a Smooth, Shaker Free Table
• Avoid use in strong airflow environment
Periodically calibrated to ensure accuracy
• Use the adapter to specify the voltage range: 110V-240V
• Operating temperature range: 10 ℃ -30 ℃
• Avoid overload, Capacity 520g
• Please use a soft dry cloth when cleaning to avoid liquids entering the equipment
