Overview

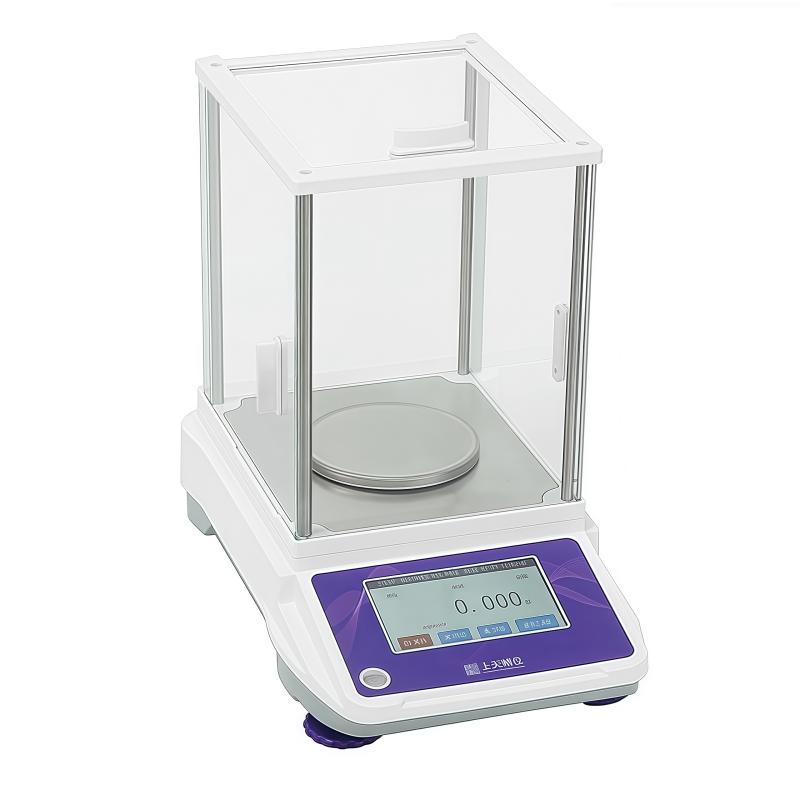

AE124C Electronic Balance is a High Accuracy weighing device with a Capacity of 120g and readability accuracy of 0.1mg. It adopts a new generation of electromagnetic force Sensor technology and is equipped with a 5-inch color TFT touch display screen. It supports a variety of weighing units and external interfaces. It is suitable for precision weighing occasions such as laboratories.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
Using a new generation of High Accuracy Electromagnetic Force Sensor technology, accurate weighing is achieved through the principle of electromagnetic force equilibrating. When the item is placed in the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the weight of the item, and displays the weight value on the Touchscreen through the digital processing system.
Applications
Laboratories, scientific research institutions, pharmaceutical, chemical, food testing, jewelry weighing, educational institutions
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Power Adapter (input 110-240V, output 12V1A)
. After booting, select the Chinese and English interface as needed
4. External calibrate as needed or wait for automatic internal calibrate
5. Place the item to be weighed in the pan (φ 90mm)
6. Read the weighing results on the display
7. Data can be transferred by connecting to a computer through the RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃, which needs to be used in a suitable environment
• Be sure to adjust the horizontal bubble before use to ensure the level of the equipment
• Pay attention to the specifications of the Power Adapter (input 110-240V, output 12V1A)
• Ensure Sensor Protection is in working condition during transportation
• Keep the pan clean to avoid affecting the weighing accuracy
Periodically calibrated to ensure measurement accuracy
