Overview

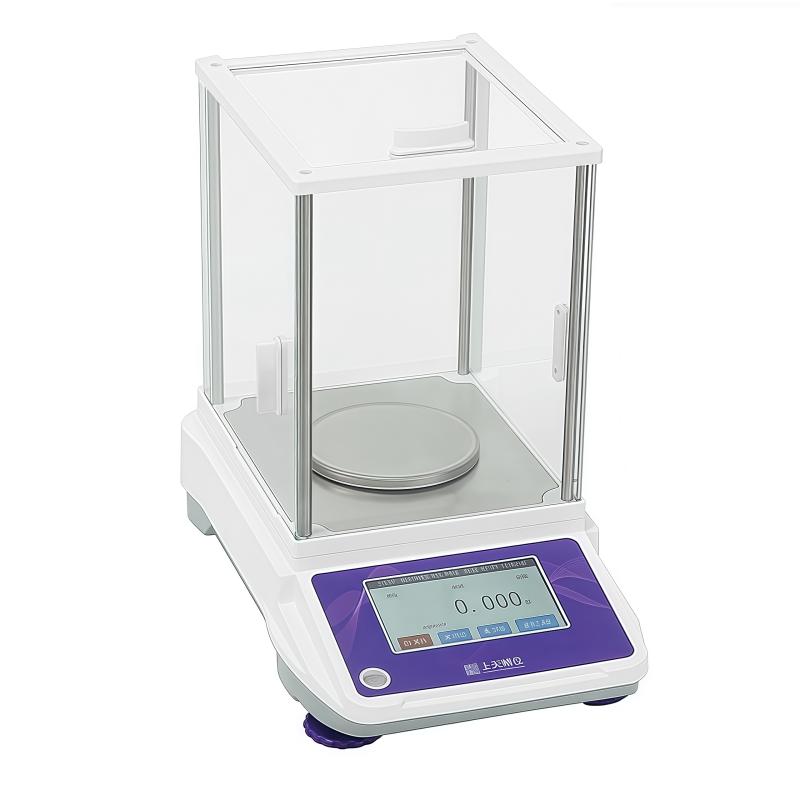

Shangtian Jingyi AE224C 1/10,000 Electronic Balance is a High Accuracy Electronic Balance with Capacity 220g and readability accuracy of 0.1mg. It adopts a new generation of electromagnetic force Sensor to ensure stable and reliable weighing. Equipped with a 5-inch color TFT touch display, it supports glove operation and has a fully automatic internal calibrating function.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses Electromagnetic Force Sensor technology to achieve High Accuracy Weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates electromagnetic force equilibrating with the item gravity, and accurately calculates the item mass by measuring the magnitude of the electromagnetic force.
Applications
Laboratory, scientific research, pharmaceutical, chemical, education, mass testing
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Turn on the power supply and turn it on to warm up.
3. Select the weighing unit as required
4. Place the item to be weighed in the center of the pan
5. Read the displayed value after stabilization
6. Use the peeling function to weigh the container
7. Transfer data through RS232 interface or PC-STWC function
Notice
• Balance level before use
• Ambient Temperature within 10~ 30 ℃
• Avoid use in strong electromagnetic interference environments
Periodically calibrated internally to ensure accuracy
• Handle with Care to Avoid Impacts and Vibration
Keep the pan clean and drying
• Ensure Sensor Protection is enabled during transportation
