Overview

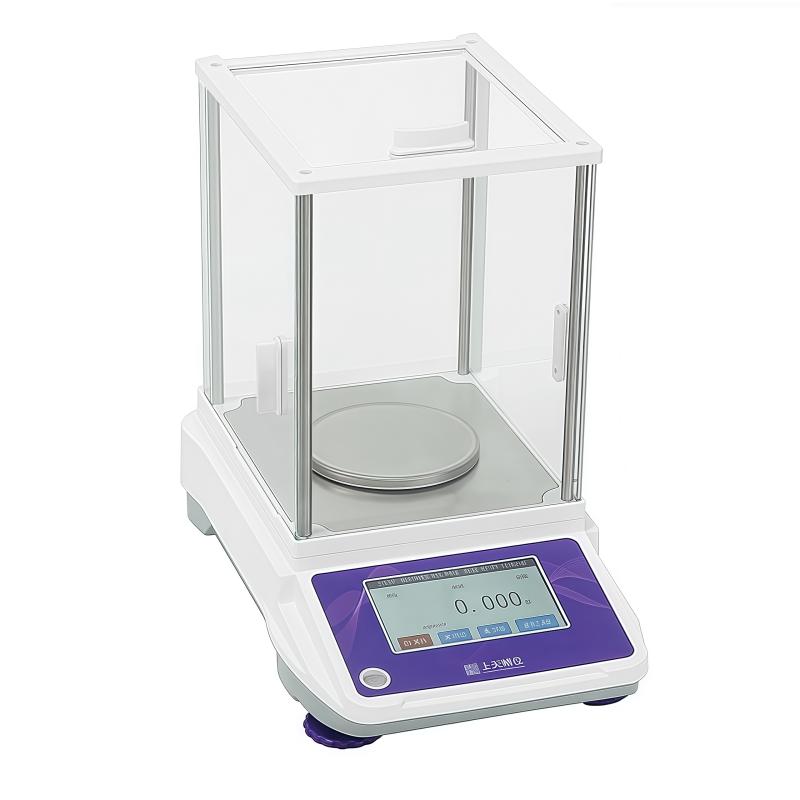

Electronic Balance is a High Accuracy weighing device, Capacity 120g, readability accuracy 0.1mg, using a new generation of electromagnetic force Sensor technology, equipped with a 5-inch color TFT touch display, supports a variety of weighing units and external calibrating functions.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. External calibrating function
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
Using Electromagnetic Force Sensor technology, High Accuracy Weighing is realized through the principle of electromagnetic force equilibrating. Sensor converts the weight signal into an electrical signal and displays it on the color TFT Touchscreen after processing.
Applications
Laboratory, Research, Pharmaceutical, Chemical, Education, Quality control
Steps
1. Connect the Power Adapter
2. Adjust Balance Level by Front Horizontal Bubble
3. Turn on and calibrate externally
4. Select the desired weighing unit
5. Place the sample for weighing
6. Transfer data through RS232 interface or PC-STWC function
7. Shut down after use
Notice
• operation temperature range is 10~ 30 ℃
• Make sure Balance Level is adjusted correctly before use
• Avoid overloading, Capacity 120g
Periodically calibrated to ensure accuracy
• Protect Sensor Device During Transportation
• Power Adapter input voltage range is 110-240V
