Overview

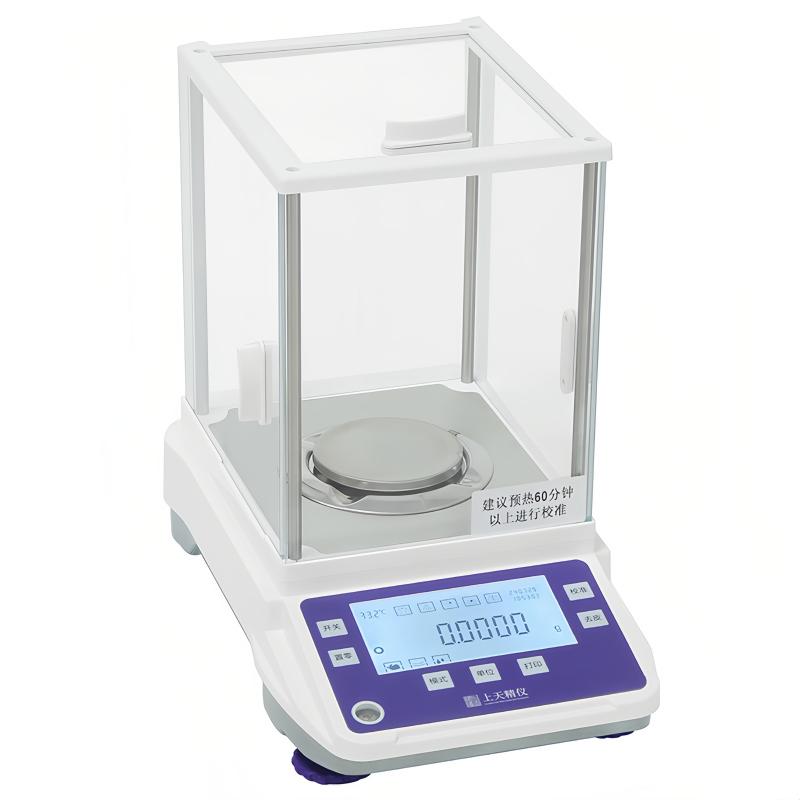

FA1004C Electronic Balance is a High Accuracy weighing device of the Shangtian Jingyi brand. It uses a new generation of electromagnetic force Sensor technology, with a readability accuracy of 0.1mg and a capacity of 100g. The product is equipped with an oversized backlit high definition LCD display and supports a variety of weighing units to meet the precise weighing needs of laboratory and industrial environments.
Features
1. Adopt New Generation High Accuracy, High Resolution Electromagnetic Force Sensor to Provide Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Wide voltage power supply design: 110V-240V, 50Hz/60Hz
Principle
The FA1004C Electronic Balance is based on the electromagnetic force Sensor technology, which realizes accurate weighing by equilibrating the electromagnetic force with the gravity of the object. When the object is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the gravity of the object, and calculates the mass value of the object by measuring the magnitude of the electromagnetic force. Dynamic temperature compensation technology monitors the change of Ambient Temperature in real time and automatically adjusts it to ensure the accuracy of the weighing result.
Applications
Laboratory, industrial weighing, quality control, R & D testing, education and research, pharmaceutical, chemical, food testing
Steps
1. Place Balance on a Smooth Work Surface
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn on and warm up, wait for Balance to stabilize
4. Internal calibrating operation as required
5. Place the item to be weighed in the center of the pan
6. Wait for the displayed value to stabilize and read the weighing result.
7. Data can be transferred by connecting to a computer through the RS232 interface
8. Turn off the power after use
Notice
• Please place the Balance on a stable, vibration-free countertop for use
• Ambient Temperature should be kept within 10~ 30 ℃
• Avoid use in strong electromagnetic interference environments
• Balance should be preheated and calibrated before weighing
• Do not exceed 100g Capacity Limit
• Keep the pan clean and avoid contact with corrosive substances
• Regularly calibrated to ensure weighing accuracy
• Handle with care when transporting and moving to avoid violent vibration
