Overview

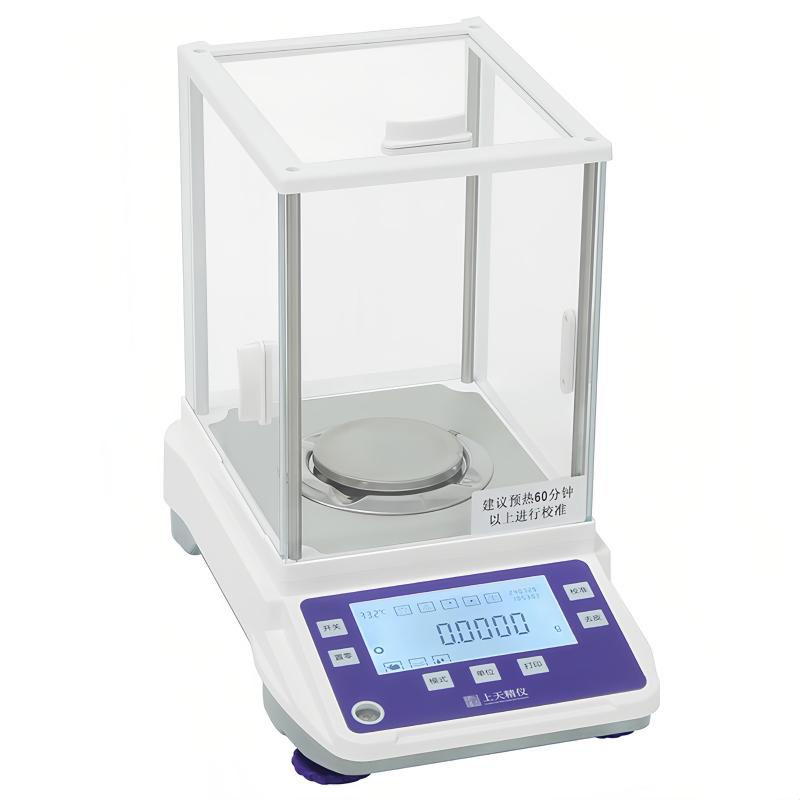

FA1204C Electronic Balance is a High Accuracy weighing device of Shangtian Jingyi brand. It adopts a new generation of electromagnetic force Sensor and dynamic temperature compensation technology to ensure stable and reliable weighing. Equipped with a large backlit high definition LCD display, it supports a variety of weighing units and external interfaces, and is suitable for precise weighing scenarios such as laboratories.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The FA1204C Electronic Balance is based on Electromagnetic Force Sensor technology and achieves accurate weighing through the principle of electromagnetic force equilibrating. When an object is placed in a pan, the Sensor generates electromagnetic force to equilibrate the object's gravity and eliminates the effects of Ambient Temperature changes through dynamic temperature compensation technology to ensure measurement accuracy.
Applications
Laboratories, scientific research institutions, pharmaceuticals, chemicals, education, quality control
Steps
1. Place Balance on a Stable Level Table
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn it on and warm up and wait for the display screen to stabilize.
4. Select the weighing unit as required (mg/g/ct/oz, etc.)
5. Place items to be weighed in the center of the pan
6. Read the stable weighing results on the display
7. Use peel function for net weight measurement
8. Connect external devices to transmit data through the RS232 interface
Notice
• Ensure that the Working Ambient Temperature is within the range of 10~ 30 ℃
• Avoid use in strong airflow or vibration environment
• Need to calibrate before weighing
• Do not exceed the Capacity limit of 120g
• Keep the pan clean to avoid contamination affecting accuracy
• Turn off the power supply in time after use to prolong the life of the equipment
