Overview

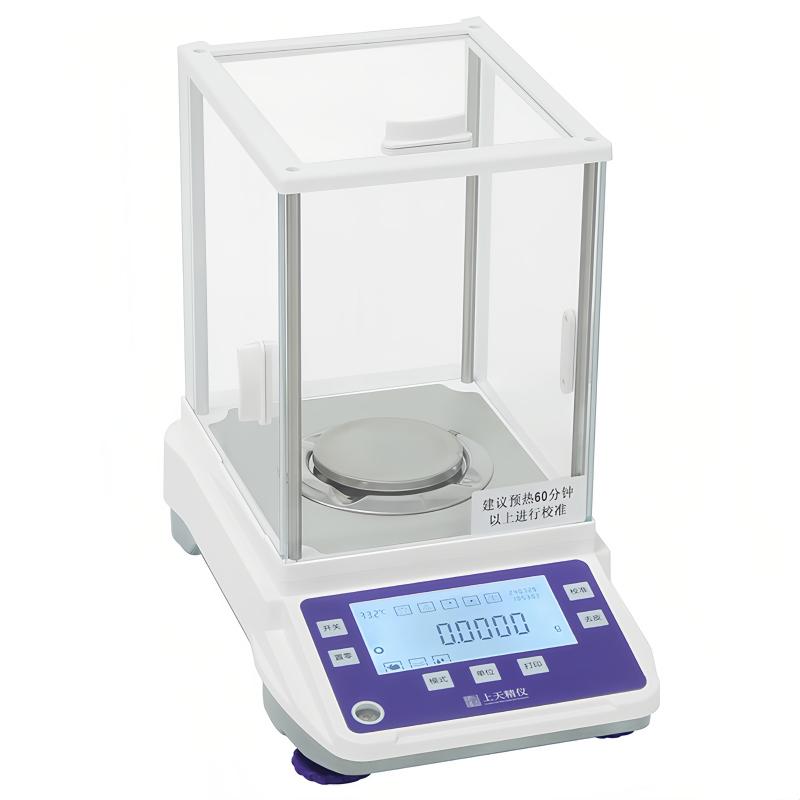

FA2004C Electronic Balance is a High Accuracy weighing device from the Seiji brand. It uses a new generation of electromagnetic force Sensor technology, with a reading accuracy of 0.1mg and a capacity range of 200g. The product is equipped with an oversized backlit LCD display and supports a variety of weighing units to meet the precise weighing needs of laboratory and industrial environments.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
FA2004C Electronic Balance works based on the principle of electromagnetic force equilibrating, detects the mass of the weighing object through the High Accuracy Electromagnetic Force Sensor, and converts the mechanical force into an electrical signal for processing. The system adopts dynamic temperature compensation technology to automatically correct the influence of Ambient Temperature changes on measurement results to ensure the accuracy and stability of weighing data.
Applications
Laboratory, industrial weighing, quality control, R & D testing, education and research
Standards
Meet traceability and compliance requirements
Steps
1. Place Balance on a Smooth Work Surface
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn it on and warm up and wait for the system to stabilize.
4. Select the weighing unit as required
5. Place items to be weighed on the pan
6. Read the stable weighing results on the display
7. Data can be transferred to the computer through the RS232 interface
8. Turn off the power after use
Notice
• Please use in an operating temperature environment of 10~ 30 ℃
• Ensure Balance is placed on a smooth and vibration-free countertop
• Avoid use in strong electromagnetic interference environments
Periodically calibrated to ensure measurement accuracy
• Keep the pan clean and avoid contact with corrosive substances
• Pay attention to handle with care during transportation to avoid violent vibration
