Overview

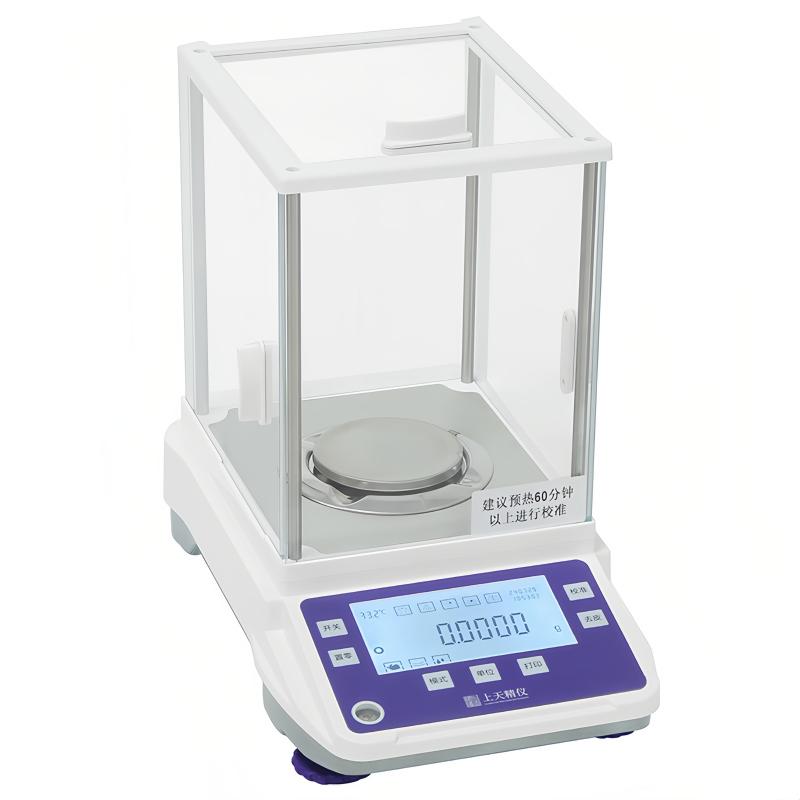

FA2204C Electronic Balance is a High Accuracy weighing device of Shangtian Jingyi brand. It adopts a new generation of electromagnetic force Sensor technology and has an oversized backlit high definition LCD display to provide stable and reliable weighing results. The product supports a variety of weighing units, comes standard with RS232 interface, and can optionally be equipped with PC-STWC function, which is suitable for laboratories, industries and other scenarios.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The FA2204C Electronic Balance is based on Electromagnetic Force Sensor technology and achieves accurate weighing through the principle of electromagnetic force equilibrating. When an object is placed in a pan, the Sensor generates electromagnetic force to equilibrate the object's gravity and automatically adjusts through dynamic temperature compensation technology to ensure accurate weighing at different Ambient Temperatures.
Applications
Laboratory, industry, scientific research, pharmaceutical, chemical, education
Steps
1. Balance on a smooth, vibration-free surface
2. Connect the Power Adapter, the input voltage is 110-240V, the frequency is 50/60Hz
3. Boot preheating to ensure that the operating temperature is within the range of 10~ 30 ° C
4. Select the weighing unit (e.g. mg, g, ct, oz) as required.
5. Place the item to be weighed lightly on the pan (size < 90mm)
6. Wait for the display to be stable (reaction time < 3S), and read the weighing result
7. Use the peeling function for full-scale peeling operation
8. Optional connection to PC through RS232 interface, use PC-STWC function to transfer data to Excel
9. Periodically calibrate internally to maintain accuracy
Notice
• Balance is placed in a smooth, vibration-free environment
• The operating temperature should be kept within the range of 10~ 30 ° C to avoid extreme temperatures affecting the accuracy
• Check that the Power Adapter input is 110-240V and the output is 12V 1A before use
• Avoid overloading when weighing, Capacity is 220g
• Periodic internal calibrating to ensure weighing accuracy
• Use a soft cloth when cleaning to avoid liquids from entering the equipment
• Shockproof storage and transportation, net weight 5.8kg, gross weight 8.6kg
