Overview

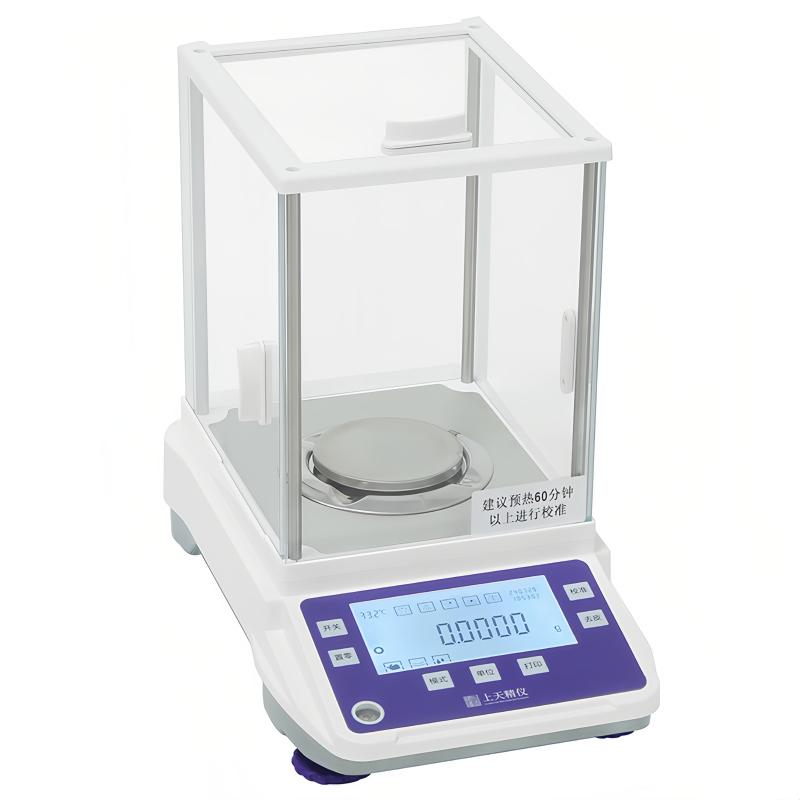

FA3204C 1/10,000 Electronic Balance is a High Accuracy weighing device of Shangtian Jingyi brand. It uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. It has an oversized backlit high definition LCD display, supports a variety of weighing units, and has built-in date and time display function to meet traceability and compliance requirements.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
Adopt a new generation of High Accuracy Electromagnetic Force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. Combined with dynamic temperature compensation technology, automatically adjust errors caused by temperature changes to ensure the accuracy of weighing results. Built-in auto calibration system triggers internal calibrating program according to time or temperature changes.
Applications
Laboratory, pharmaceutical, chemical, food, jewelry, education and research, quality control
Steps
1. Place Balance on a Stable Flat Table
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn it on to warm up and wait for stability.
4. Select the weighing unit as required
5. Place the sample for weighing
6. Read the weighing results on the LCD display
7. Optional use of RS232 interface to connect to computer to transmit data
8. Clean the pan and shut down after use
Notice
• Please place the Balance on a stable, flat, vibration-free countertop for use
• Ambient Temperature should be kept within 10~ 30 ℃
• Avoid use in strong electromagnetic interference environments
• Balance is fully preheated and stable before weighing
• Regularly calibrated to ensure weighing accuracy
• Please use a soft cloth when cleaning and avoid using corrosive cleaners
• Do not exceed Capacity 320g
• Handle with care when transporting and moving to avoid violent vibration
