Overview

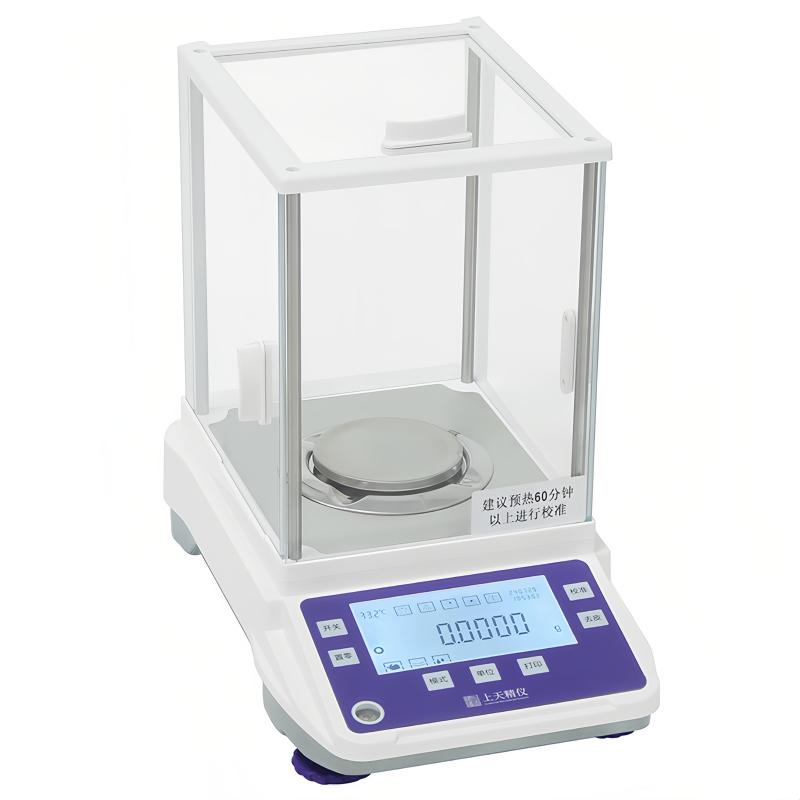

FA 10.04 million Electronic Balance is a High Accuracy weighing device from the Seiji brand, which uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The product features a large backlit high definition LCD display, supports a variety of weighing units, comes standard with RS232 interface, and has built-in date and time display function to meet traceability and compliance requirements.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
FA1004 Electronic Balance uses electromagnetic force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. When an object is placed on a pan, the Sensor generates the corresponding electromagnetic force to equilibrate the gravity of the object, and calculates the object mass by measuring the magnitude of the electromagnetic force. Dynamic temperature compensation technology monitors Ambient Temperature changes in real time and automatically adjusts to ensure the accuracy of weighing results.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Steps
1. Place Balance on a Smooth Work Surface
2. Connect Power Adapter, input voltage 110-240V
3. Turn it on to warm up and wait for stability.
4. External calibrating as required
5. Place items to be weighed on the pan
6. Read the weighing results on the LCD display
7. Data can be transferred by connecting to a computer through the RS232 interface
8. Turn off the power after use
Notice
• Please place the Balance on a stable, vibration-free countertop for use
• Ambient Temperature should be kept within 10~ 30 ℃
• Avoid use in strong electromagnetic interference environments
• Periodic external calibrating to ensure weighing accuracy
• Please use a soft cloth when cleaning to avoid liquids from entering the inside of the instrument
• Do not overload, Capacity is 100g
• Disconnect the power supply when not in use for a long time
