Overview

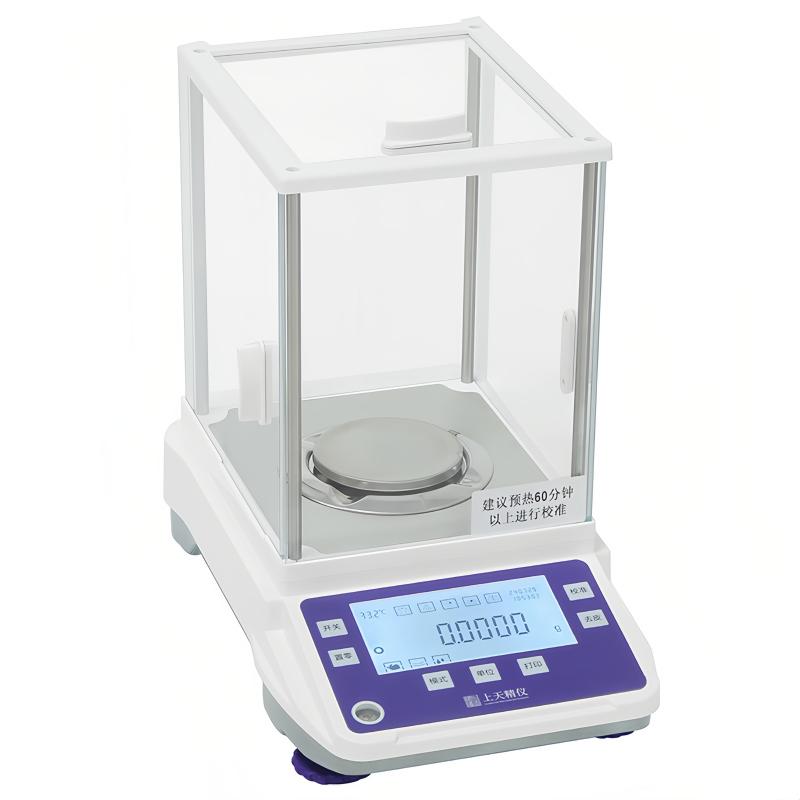

FA 22.04 million Electronic Balance is a High Accuracy weighing device from the Seiji brand. It uses a new generation of electromagnetic force Sensor and dynamic temperature compensation technology to ensure stable, reliable and accurate weighing results. The product features an oversized backlit high definition LCD display, supports a variety of weighing units, and comes standard with an RS232 interface to meet the precise weighing needs of laboratories and industrial environments.
Features
1. Adopt New Generation High Accuracy, High Resolution Electromagnetic Force Sensor to Provide Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. External calibrating function to ensure long-term use accuracy
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Wide voltage power supply design: 110V-240V, 50Hz/60Hz
Principle
FA2204 Electronic Balance is based on Electromagnetic Force Sensor technology and realizes High Accuracy weighing through the principle of electromagnetic force equilibrating. When the object is placed in the pan, the Sensor generates electromagnetic force to equilibrate the gravity of the object, and the dynamic temperature compensation technology automatically adjusts the error caused by the change of Ambient Temperature to ensure the accuracy and stability of the measurement results.
Applications
Laboratory, industrial weighing, quality control, R & D, education, pharmaceutical, chemical, food, jewelry weighing
Steps
1. Place the Balance on a smooth table and connect the Power Adapter
2. Turn on the power switch and wait for the Balance self-test to complete.
3. Select the weighing unit as needed (mg/g/ct/oz, etc.)
4. Place the weighing container and press the peel button to return to zero.
5. Add the sample to be tested and wait for the reading result after the display is stable.
6. Turn off the power after use and clean the pan
Notice
• Please place the Balance on a stable, vibration-free countertop for use
• Avoid operating in environments with strong airflow or large temperature fluctuations
Periodic external calibrating to ensure measurement accuracy
• Do not exceed Capacity 220g to prevent damage to Sensor
Keep the pan clean and avoid direct contact with corrosive substances
• Use the specified Power Adapter, input voltage 110-240V
• operation temperature range 10~ 30 ℃, beyond may affect the accuracy
