Overview

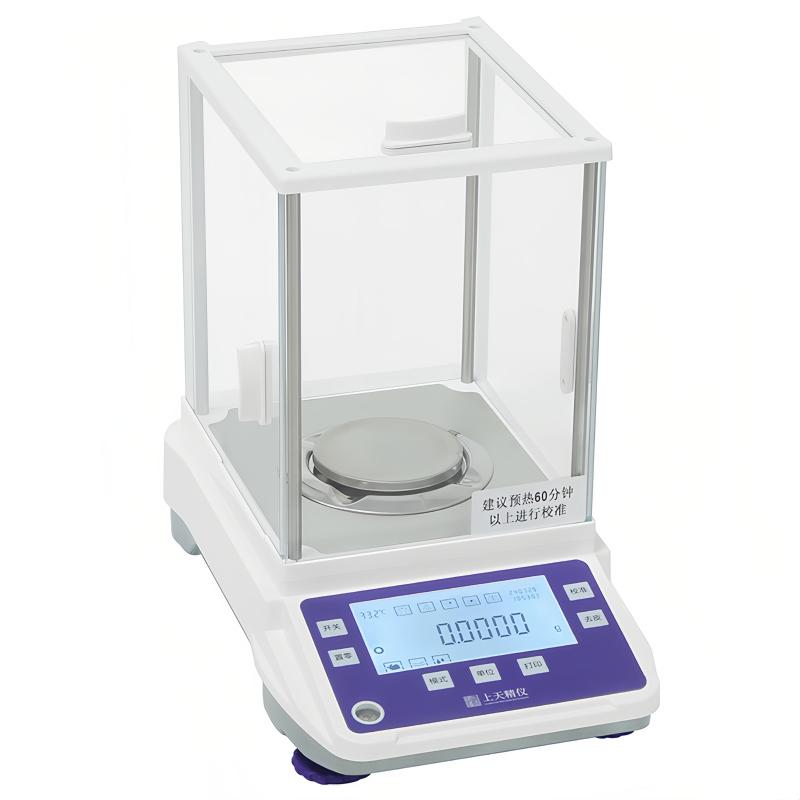

Electronic Balance is a High Accuracy weighing device with a Capacity of 320g and readability accuracy of 0.1mg. It uses a new generation of electromagnetic force Sensor and dynamic temperature compensation technology to ensure the stability and accuracy of weighing results.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses Electromagnetic Force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. Built-in dynamic temperature compensation system automatically corrects the influence of Ambient Temperature change symmetry results to ensure weighing accuracy under different temperature conditions.
Applications
Laboratories, scientific research institutions, pharmaceuticals, chemicals, food, jewelry, education, quality control
Standards
Meet traceability and compliance requirements
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter (input 110-240V)
3. Boot warm-up
4. Select the weighing unit as needed (mg/g/ct/oz, etc.)
5. Place the sample for weighing
6. Read the weighing results on the LCD display
7. Data can be transferred to the computer through the RS232 interface
Notice
• operation temperature range is 10~ 30 ℃
• Avoid use in strong electromagnetic interference environments
• Balance level before weighing
Periodically calibrated to ensure accuracy
• Avoid Capacity 320g
Keep the pan clean and drying
• Power Adapter input voltage range is 110-240V
