Overview

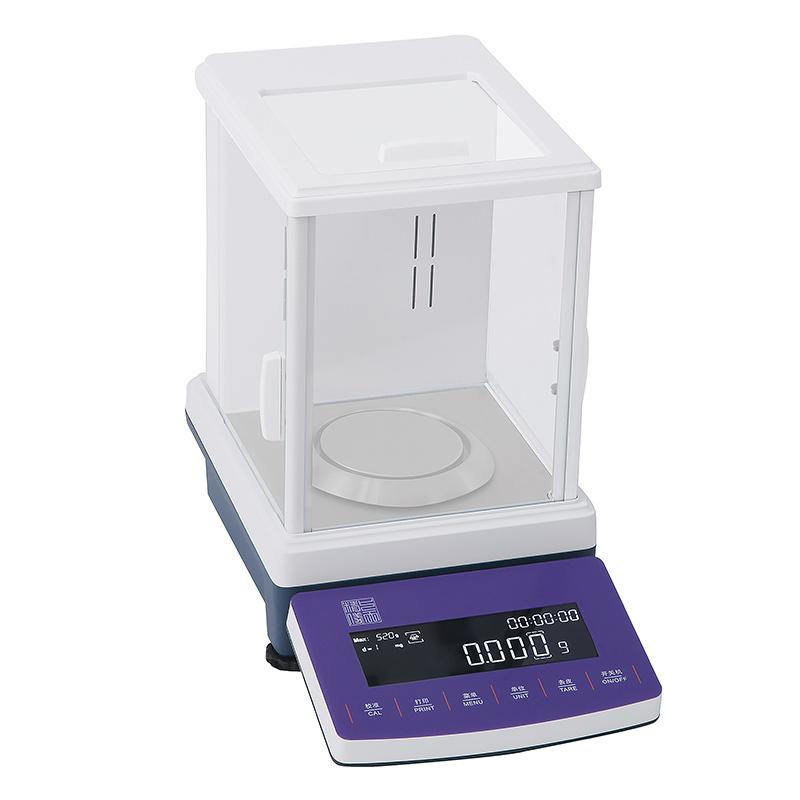

AB1003C Electronic Balance is a High Accuracy weighing device with Capacity 1000g and readability accuracy 1mg. It uses a new generation of electromagnetic force Sensor and OLED backlit display, supports external calibrating and fully automatic internal calibrating, and is suitable for environments such as laboratories that require accurate measurement.
Features
1. High Accuracy Electromagnetic Force Sensor to Ensure Stable and Reliable Weighing
2. Ultra-clear OLED backlight stretchable LCD screen, supports glove operation
3.Support external calibrating and automatic internal calibrating (AB-C series)
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure weighing accuracy
6. Lower hook design to meet special application requirements
7. Standard RS232 and USB interface, optional PC-STWC function to directly transfer data to Excel
8. Built-in date and time display to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Wide voltage power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses electromagnetic force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. When an item is placed on a pan, the Sensor detects the weight and converts it into an electrical signal, which is processed internally and displayed on an OLED display.
Applications
Laboratories, scientific research institutions, pharmaceuticals, chemicals, food, jewelry, education
Steps
1. Place Balance on Stable Plane and Connect Power
2. Boot and warm up to a stable state
3. Select the calibrating method as needed (external or internal auto calibration)
4. Place the item to be weighed in the center of the pan
5. Read the weight data on the display
6. Optional data transfer to computer via RS232 or USB interface
Notice
• Balance level before use
• Avoid use in strong airflow or vibration environment
Periodically calibrated to ensure accuracy
• Please use a soft cloth when cleaning to avoid liquids entering the equipment
• Power Adapter input range is 110-240V, please do not use beyond the range
• Operating temperature range is 10 ℃ -30 ℃, exceeding may affect accuracy
• It is recommended to disconnect the power supply when not in use for a long time
