Overview

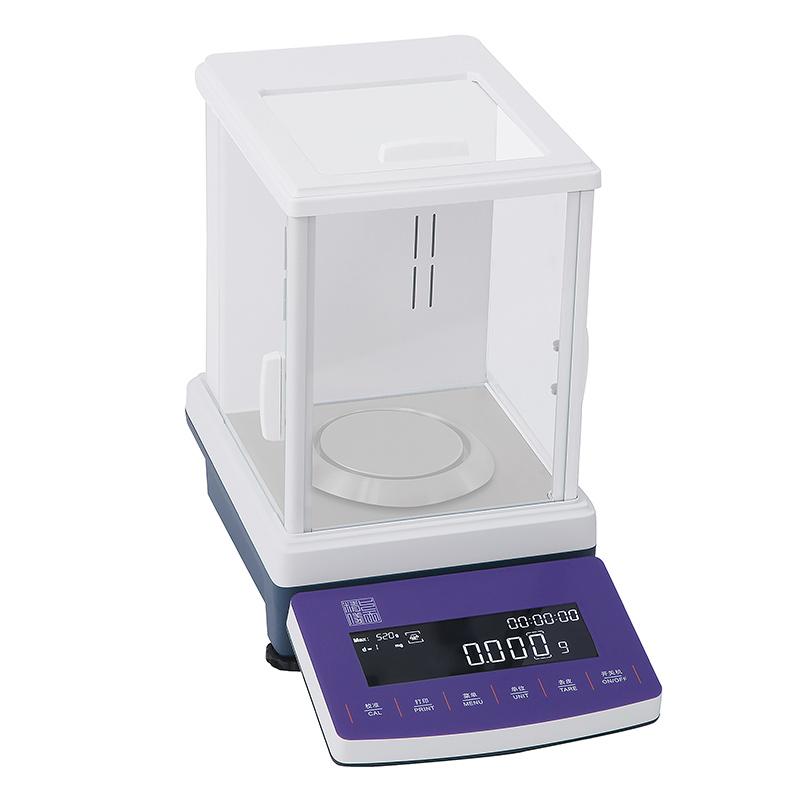

AB623 Electronic Balance is a High Accuracy weighing device with Capacity 620g and readability accuracy 1mg. It uses a new generation of electromagnetic force Sensor, equipped with ultra-clear OLED backlit display, supports a variety of weighing units and interfaces, and is suitable for laboratory and other environments.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. External calibrating function
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses electromagnetic force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. When an item is placed in the pan, the Sensor detects the weight and converts it into an electrical signal, which is processed internally and displayed on the display.
Applications
Laboratory, scientific research, industrial weighing, quality control
Steps
1. Place the Balance on the stable plane and connect the Power Adapter
2. Boot Preheating, Ensure Ambient Temperature Within 10 ℃ -30 ℃ Range
3. Select the weighing unit as needed (mg/g/ct/oz, etc.)
4. Place the sample on the pan for weighing
5. Use the peeling function to deduct the weight of the container (full scale peeling)
6. Connect external devices to transfer data through RS232 or USB interface (optional)
7. Periodically calibrated to ensure accuracy
Notice
• Power frequency in 110V-240V range, frequency 50Hz/60Hz
• Operating Ambient Temperature should be kept at 10 ℃ -30 ℃
• Close Draft Shield when weighing to reduce airflow interference
• Avoid use in a strong static environment
• Regular external calibrated maintenance accuracy
• Use the adapter to specify input and output parameters: input 110-240V 0.6A, output 9V 2A
• Note that the net weight of the equipment is 6.6kg and the gross weight is 9.9kg. Be careful when handling
