Overview

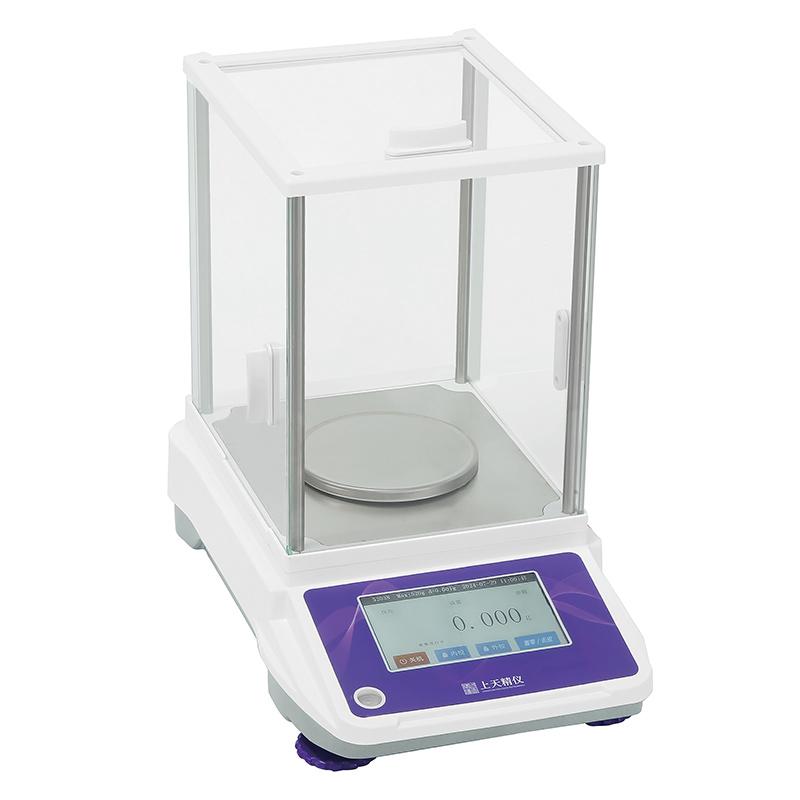

The AE223C Electronic Balance is a High Accuracy weighing device that uses a new generation of electromagnetic force Sensor to provide stable and reliable weighing results. Equipped with a 5-inch color TFT touch display, it supports operation with laboratory gloves, and has external calibrating and fully automatic internal calibrating functions. It is suitable for a variety of weighing needs.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. Fully automatic internal calibrating for external calibrating or time and temperature triggering (AE-C series)
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance is based on Electromagnetic Force Sensor technology, which enables High Accuracy Weighing through the principle of electromagnetic force equilibrating. When an object is placed on the pan, the Sensor detects the weight and converts it into an electrical signal, which is processed and displayed on the Touchscreen to provide accurate weighing results.
Applications
Laboratory, industrial weighing, quality control, scientific research, education, pharmaceutical, chemical, food, jewelry weighing
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter, input voltage 110-240V
3. Select the Chinese and English interface after booting, and set the unit as needed
4. Perform external calibrating or wait for automatic internal calibrating to complete
5. Place the sample for weighing and read the display results
6. Optional use of RS232 interface to transfer data to Excel and other applications
Notice
• The operation temperature range is 10~ 30 ℃ to ensure that it is used in a suitable environment
• Check the horizontal bubble before use to ensure that the Balance is placed horizontally
• Avoid overloading, Capacity 220g
Periodically calibrated to ensure accuracy
• Protect Sensor Device During Transportation
• Power Adapter input is 110-240V, output is 12V 1A, need to match
