Overview

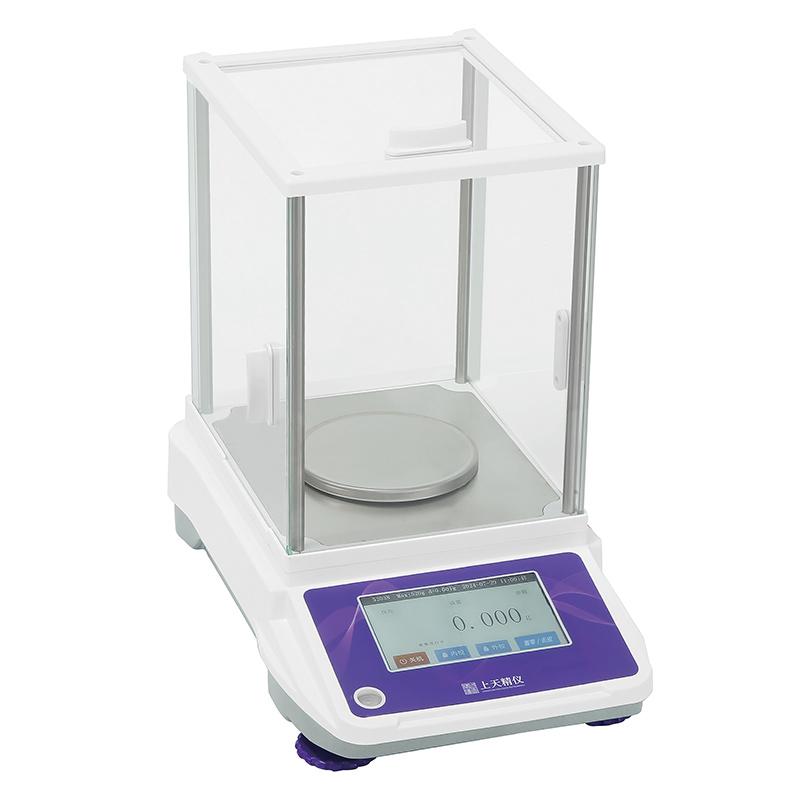

The AE223 Electronic Balance is a High Accuracy weighing device that uses a new generation of electromagnetic force Sensor to provide stable and reliable weighing results. It features a 5-inch color TFT touch display, supports operation with laboratory gloves, and is equipped with an external calibrating function for a variety of weighing needs.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. External calibrating function to ensure weighing accuracy
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz, suitable for various environments
Principle
The Electronic Balance works based on the principle of electromagnetic force Sensor, which equilibrates the gravity of the object by electromagnetic force to achieve High Accuracy weighing. The Sensor converts the weight into an electrical signal, which is processed and displayed on the 5-inch color TFT Touchscreen to ensure the accuracy and stability of the measurement results.
Applications
Laboratory, industrial weighing, quality control, education and research, pharmaceutical, chemical, food testing
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Connect the Power Adapter, the input voltage is 110-240V, the frequency is 50/60Hz
3. Select the Chinese and English interface after booting, and set the weighing unit as needed
4. Externally calibrated to ensure accuracy
5. Place the sample on the pan for weighing, support full scale peeling function
6. Use RS232 interface for optional data transfer to Excel and other applications
7. Turn off the power after the operation is completed
Notice
* Ensure that the Working Ambient Temperature is within the range of 10~ 30 ℃
* Check the horizontal bubble before use to ensure the horizontal placement of Balance
* Avoid use in strong electromagnetic interference environments
Periodically calibrated to maintain accuracy
* Protect Sensor Device During Transportation
* Power Adapter input is 110-240V, output is 12V 1A, do not use beyond the range
Use a soft cloth when cleaning to avoid liquids from entering the equipment
