Overview

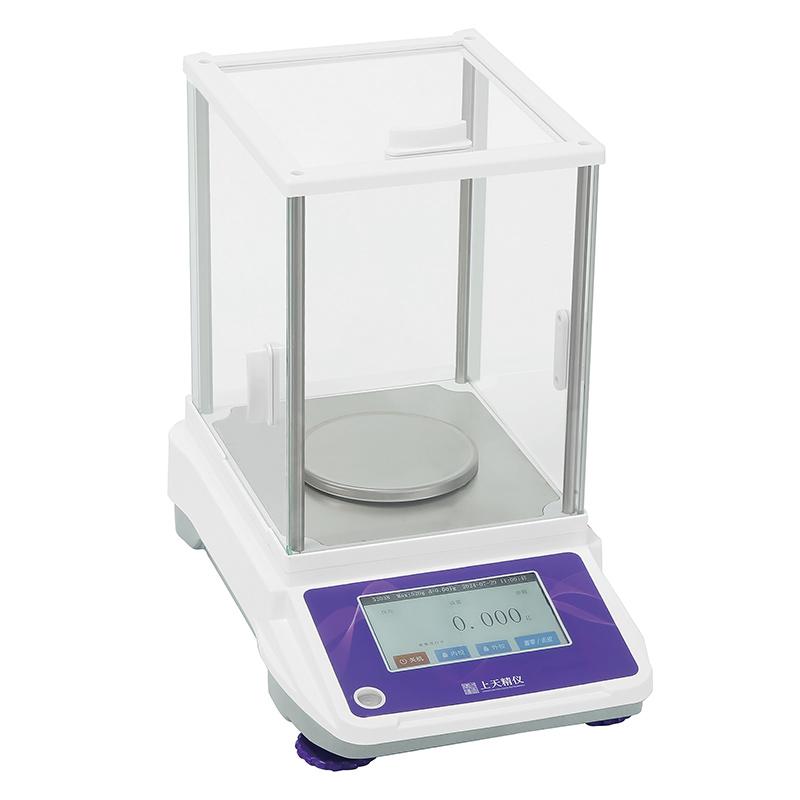

Shangtian Jingyi AE323 Precision Balance (0.001 g) is a High Accuracy weighing device with Capacity 320g and readability accuracy 1mg. It adopts a new generation of electromagnetic force Sensor to ensure stable and reliable weighing results. Equipped with a 5-inch color TFT Touchscreen, it supports glove operation and has an external calibrating function, suitable for precise weighing scenarios such as laboratories.
Features
1. Adopt New Generation High Accuracy, High Resolution Electromagnetic Force Sensor to Provide Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. External calibrating function to ensure weighing accuracy
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz, suitable for a variety of power environments
Principle
Based on the Electromagnetic Force Sensor technology, the Electronic Balance is precisely weighed using the principle of electromagnetic force equilibrating. When an object is placed in a pan, the Sensor detects weight changes and converts them into electrical signals, which are processed and displayed on the Touchscreen to ensure high resolution and stability.
Applications
Laboratories, scientific research institutions, pharmaceuticals, chemicals, education, quality control
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter, input voltage 110-240V
3. Select the Chinese and English interface after booting, and set the unit as needed
4. Externally calibrated to ensure accuracy
5. Place the sample for weighing and read the display results
6. Optional use of RS232 interface to transfer data to PC or Excel
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme temperatures
• Ensure that the Power Adapter input voltage is within the range of 110-240V
• Check the horizontal bubble before use and keep the Balance level
• Pay attention to protect the Sensor device during transportation to prevent damage
Periodic external calibrating to maintain accuracy
• Avoid overloading, Capacity 320g
