Overview

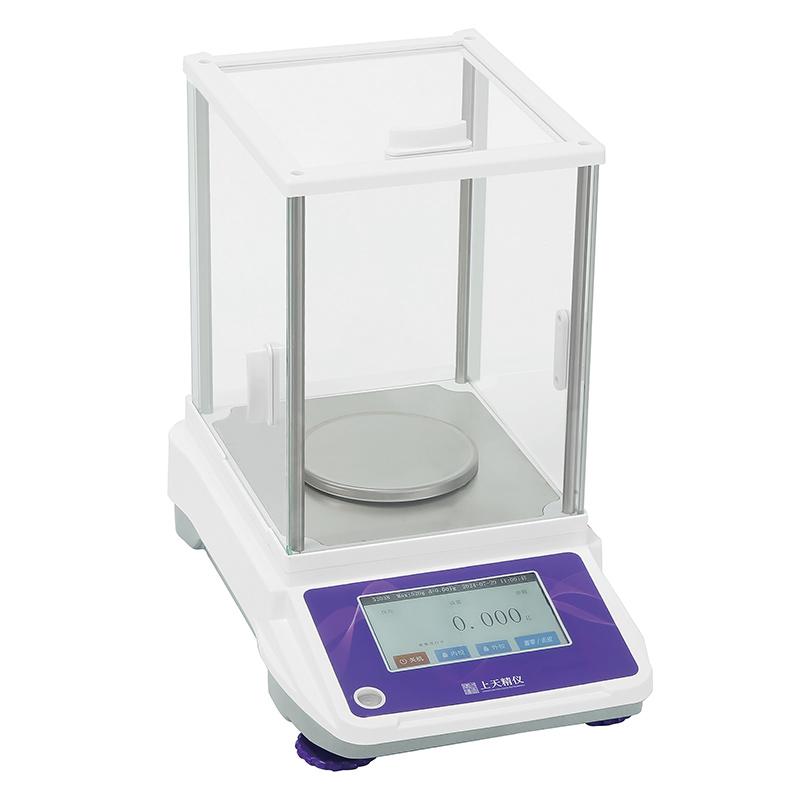

The AE523 Electronic Balance is a High Accuracy weighing device with a Capacity of 520g and a readability accuracy of 1mg. It adopts a new generation of electromagnetic force Sensor to ensure stability and reliability. Equipped with a 5-inch color TFT Touchscreen, it supports glove operation and has an external calibrating function, suitable for laboratory and other environments.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. External calibrating function
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses Electromagnetic Force Sensor technology to achieve High Accuracy Weighing through the principle of electromagnetic force equilibrating. The Sensor converts the weight into an electrical signal, which is processed and displayed on the Touchscreen to ensure the accuracy and stability of the measurement results.
Applications
Laboratory, industrial weighing, quality control, educational research
Steps
1. Place the Balance on the water platform surface and adjust it to the horizontal state through the front horizontal bubble
2. Connect Power Adapter, input voltage 110-240V, output 12V 1A
3. Select the desired weighing unit (such as mg, g, etc.) after booting.
4. Place the sample for weighing, and the display screen displays the weight in real time
5. Use peeling function to remove container weight in full range
6. Optional connection to PC through RS232 interface to realize direct data transfer to Excel
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in an environment beyond the range
• Ensure that the Power Adapter input voltage is 110-240V and the output is 12V 1A
• Check the horizontal bubble before use to ensure that the Balance is level
• Pay attention to protect the Sensor during transportation to prevent damage
• Avoid operating in a strong electromagnetic interference environment, so as not to affect the accuracy
