Overview

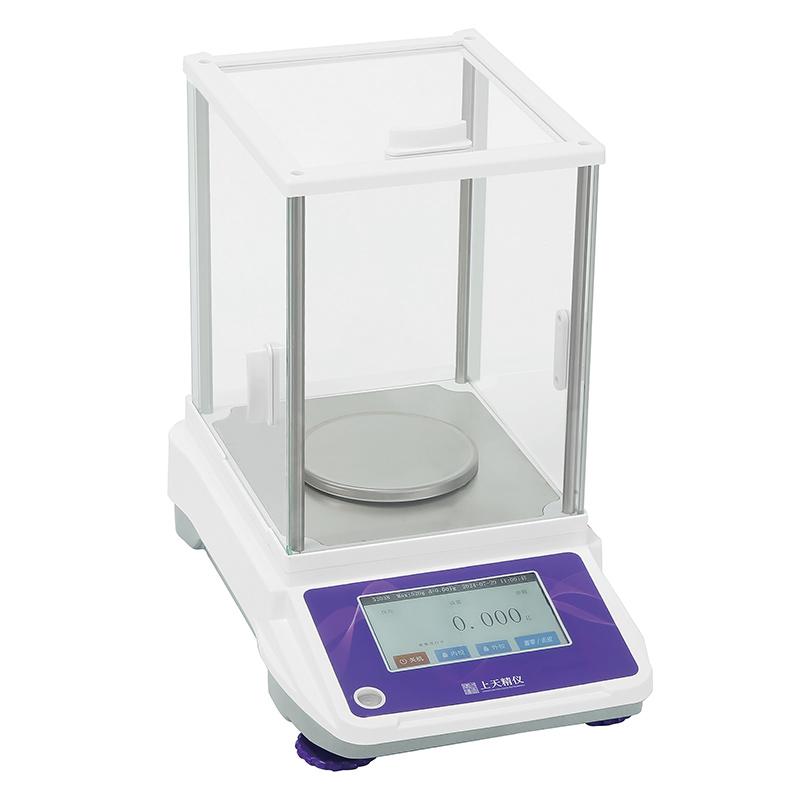

The AE623 Electronic Balance is a High Accuracy weighing device with a Capacity of 620g and a readability accuracy of 1mg. It uses a new generation of electromagnetic force Sensor to ensure stability and reliability. Equipped with a 5-inch color TFT Touchscreen, it supports glove operation and has an external calibrating function to meet laboratory and industrial weighing needs.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. External calibrating function to ensure weighing accuracy
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz, suitable for various environments
Principle
The Electronic Balance uses electromagnetic force Sensor technology to achieve High Accuracy weighing through the principle of electromagnetic force equilibrating. When an object is placed in the pan, the Sensor detects the weight change and converts it into an electrical signal. After internal processing, the result is displayed on the display screen to ensure stable and reliable weighing.
Applications
Laboratory, industrial weighing, scientific research, quality control, education
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter, input voltage 110-240V
3. Select the Chinese and English interface after booting, and set the unit as needed
4. Externally calibrated to ensure accuracy
5. Place the sample in the pan for weighing and read the display results
6. Optional use of RS232 interface to transfer data to PC or Excel
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme environments
• Ensure that the Power Adapter input is 110-240V and the output is 12V 1A
• Check the horizontal bubble before use to ensure that the Balance is placed horizontally
• Pay attention to protect the Sensor during transportation to avoid violent vibration
Periodic external calibrating to maintain accuracy
• Avoid overloading, Capacity does not exceed 620g
