Overview

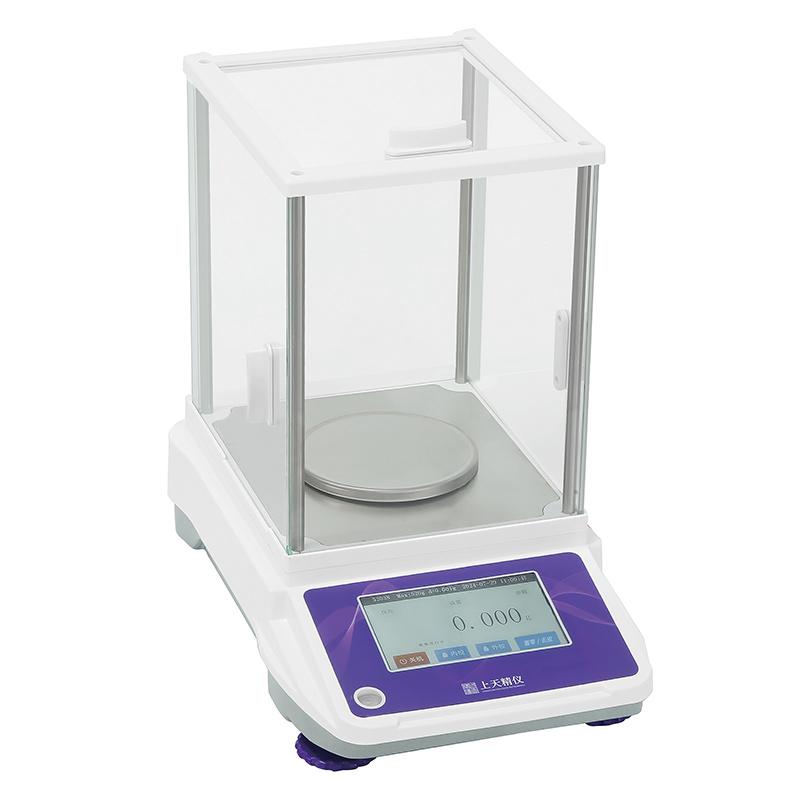

The AE1003 Electronic Balance is a High Accuracy weighing device with a Capacity of 1000g and readability accuracy of 1mg. It adopts a new generation of electromagnetic force Sensor to ensure stability and reliability. Equipped with a 5-inch color TFT Touchscreen, it supports glove operation and has external calibrating function.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. External calibrating function
4. Chinese and English interface switching, front horizontal bubble adjustment, simple and intuitive operation
5. Sensor transport protection device to ensure its safety
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses Electromagnetic Force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. When an object is placed on a pan, the Sensor generates electromagnetic force to equilibrate gravity for mass measurement.
Steps
1. Place the Balance on a smooth surface and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V 1A)
3. Select the desired weighing unit (such as mg, g, etc.) after booting.
4. Externally calibrated operation
5. Place the item to be weighed on the pan for weighing
6. Data can be transferred by connecting to a computer through the RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃, please ensure that it is used in a suitable environment
• Be sure to adjust the horizontal bubble to the horizontal position before use
• Note that the Power Adapter input voltage range is 110-240V
• Ensure Sensor Protection is locked during transportation
Avoid operating in a strong electromagnetic interference environment
