Overview

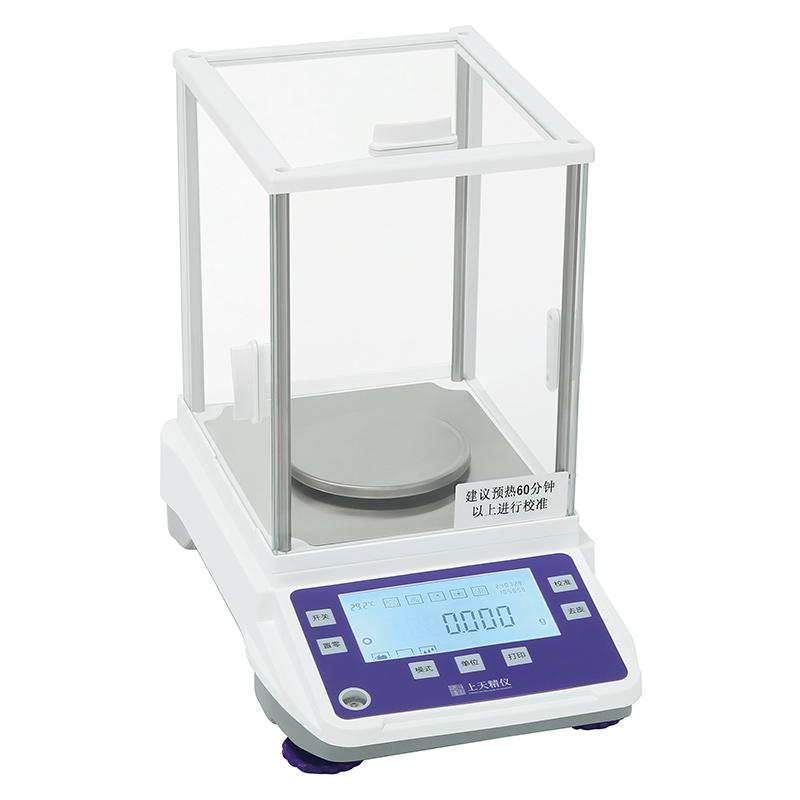

Shangtian Jingyi JA2003C One thousandth Electronic Balance is a High Accuracy weighing equipment with a Capacity of 200g and a readability accuracy of 1mg. It adopts a new generation of electromagnetic force Sensor and dynamic temperature compensation technology to ensure stable and reliable weighing results. Equipped with an oversized backlit LCD display and a variety of unit options, it is suitable for laboratory, industrial and other scenarios.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses electromagnetic force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. Dynamic temperature compensation technology automatically adjusts errors caused by temperature changes to ensure weighing accuracy. The internal calibrate function is triggered by time or temperature to automatically calibrate the operation.
Applications
Laboratory, industrial weighing, quality control, scientific research and education, pharmaceutical, chemical industry
Steps
1. Place the Balance on a smooth table and connect the Power Adapter
2. Boot preheating to ensure that the operating temperature is within the range of 10~ 30 ° C
3. Select the weighing unit as needed (mg/g/ct/oz, etc.)
4. Place the sample on the pan for weighing
5. Use peel function for net weight measurement
6. Connect to the computer to transfer data through the RS232 interface (optional)
7. Periodically calibrate internally to ensure accuracy
Notice
• Please ensure that the Working Ambient Temperature is within the range of 10~ 30 ℃
• Avoid use in vibration or air disturbance environments
• Preheat the equipment before weighing to achieve a stable state
Periodic calibrating to ensure measurement accuracy
• Pay attention to voltage matching when using adapter power supply (110-240V)
• Keep the pan clean to avoid contamination affecting the weighing results
• Pay attention to shockproof and moisture-proof during transportation and storage
