Overview

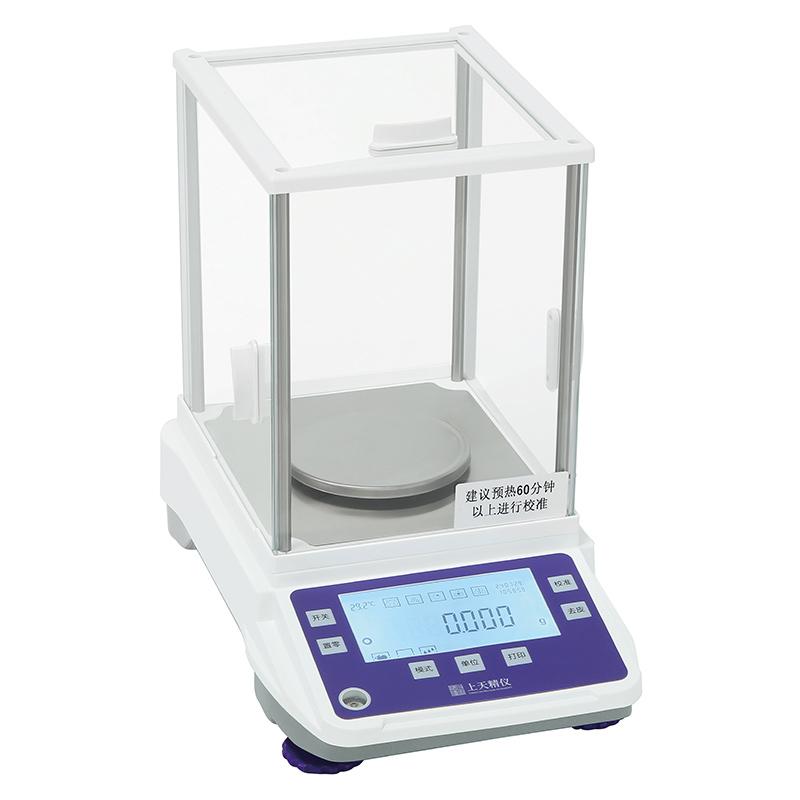

Shangtian Jingyi JA3003C One thousandth Electronic Balance is a High Accuracy weighing equipment with Capacity 300g and readability accuracy 1mg. It adopts electromagnetic force Sensor and dynamic temperature compensation technology to ensure stable and reliable weighing. Equipped with a large backlit LCD display, it supports a variety of unit switching and RS232 interface, suitable for laboratories, industries and other scenarios.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Provides Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure weighing accuracy
4. Fully automatic internal calibrating function, support external calibrating or time and temperature triggering
5. The weighing stability time and reaction speed are adjustable, and the reaction time is less than 3 seconds
6. Support a variety of weighing units: mg, g, ct, oz, etc
7. Optional lower hook design to meet special application needs
8. Standard RS232 interface, optional PC-STWC function to directly transfer data to Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Wide voltage power supply adaptation: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses Electromagnetic Force Sensor technology to achieve High Accuracy weighing through the principle of electromagnetic force equilibrating. Dynamic temperature compensation technology automatically adjusts the impact of Ambient Temperature changes to ensure measurement accuracy. The internal calibrating system automatically triggers according to time or temperature changes to maintain long-term stability.
Applications
Laboratory, industrial weighing, quality control, education and research, pharmaceutical, chemical, Food processing
Steps
1. Place the Balance on the stable plane and connect the Power Adapter
2. Boot Preheating, Ensure Ambient Temperature Within 10~ 30 ℃
3. Select the weighing unit as needed (mg/g/ct/oz, etc.)
4. Place the sample on the pan (φ 115mm) for weighing
5. Use peel function for net weight measurement
6. Connect external devices to transmit data through the RS232 interface
7. Periodically calibrate internally to ensure accuracy
Notice
• Avoid use in strong airflow or vibration environment
• Ensure that the operating temperature is kept within the range of 10~ 30 ° C
Periodically calibrated to maintain measurement accuracy
• Clean the pan in time after use to prevent contamination
• Do not overload, Capacity does not exceed 300g
• Power Adapter input voltage range is 110-240V
• Pay attention to moisture and dust when storing
