Overview

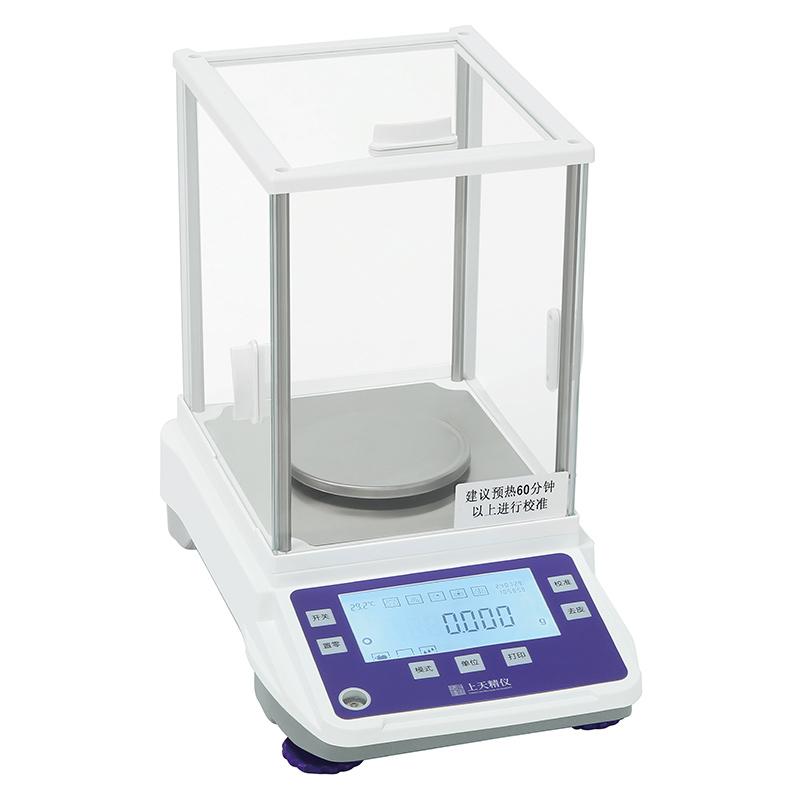

Shangtian Jingyi JA4003C One thousandth Electronic Balance is a High Accuracy weighing equipment with a Capacity of 400g and a readability accuracy of 1mg. It adopts a new generation of electromagnetic force Sensor and dynamic temperature compensation technology to ensure the stability and accuracy of weighing results, and is suitable for laboratories, industries and other scenarios.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance is based on the Electromagnetic Force Sensor technology and achieves accurate weighing through the principle of electromagnetic force equilibrating. Dynamic temperature compensation technology automatically adjusts errors caused by temperature changes to ensure weighing accuracy. The internal calibrate function is triggered by time or temperature and automatically calibrates to maintain accuracy.
Applications
Laboratory, industry, scientific research, education, pharmaceuticals, chemicals, food, jewelry
Steps
1. Balance on a smooth, vibration-free surface
2. Connect Power Adapter, input voltage 110-240V, output 12V 1A
3. Boot preheating to ensure that the operating temperature is within the range of 10~ 30 ° C
4. Select the weighing unit (e.g. mg, g, ct, oz) as required.
5. Place the sample on the pan (size φ 115mm) for weighing
6. Use the peeling function for full-scale peeling operation
7. Optional connection to PC through RS232 interface, use PC-STWC function to transfer data to Excel
8. Shut down after weighing
Notice
• Balance is placed in a smooth, vibration-free environment
• The operating temperature should be kept within the range of 10~ 30 ° C to avoid extreme temperatures affecting the accuracy
• Check that the Power Adapter input is 110-240V and the output is 12V 1A before use to ensure voltage matching
Periodic internal calibration to maintain weighing accuracy
• Avoid overload, Capacity does not exceed 400g
• Wipe with a soft cloth when cleaning to prevent liquids from entering the inside of the device
• Shockproof storage and transportation, net weight 5.8kg, gross weight 8.6kg
• When using the lower hook function, make sure that the weight of the hanging item is within the allowable range
