Overview

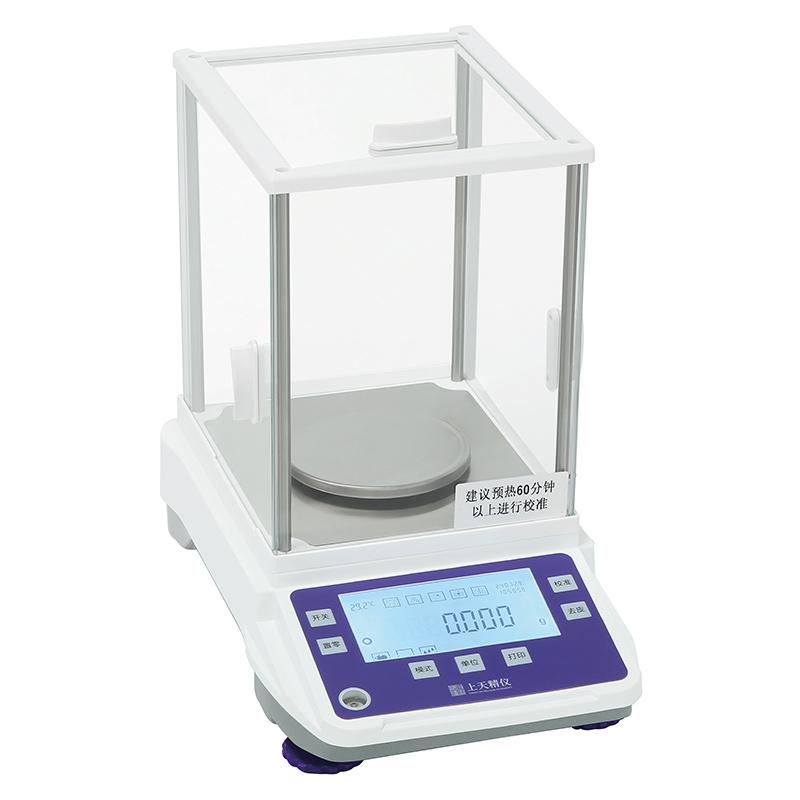

JA10003C Electronic Balance is a High Accuracy weighing equipment with Capacity 1000g and readability accuracy 1mg. It adopts a new generation of electromagnetic force Sensor and dynamic temperature compensation technology to ensure stable and reliable weighing. Equipped with a large backlit high definition LCD display, it supports a variety of unit switching and RS232 data output, suitable for laboratories, industries and other scenarios.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. Fully automatic internal calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
Electromagnetic Force Sensor technology is used to achieve accurate weighing through the principle of electromagnetic force equilibrating. Dynamic temperature compensation technology automatically adjusts errors caused by temperature changes to ensure measurement accuracy. Internal calibrating system triggers auto calibration according to time or temperature to ensure long-term stability.
Applications
Laboratory, industry, medicine, education, scientific research
Steps
1. Place the Balance on a smooth table and connect the Power Adapter
2. Turn it on and warm up and wait for the display screen to stabilize.
3. Select the weighing unit as required
4. Place the sample for weighing and read the displayed results
5. Use peeling function to deduct container weight
6. Optional connection to computer to transmit data through RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme temperatures
• Power frequency in 110V-240V range, using the original adapter
• calibrate before weighing to ensure accuracy
• Avoid overloading, Capacity 1000g
• Keep the pan clean to prevent contamination from affecting accuracy
• Pay attention to shock and moisture protection during transportation and storage
