Overview

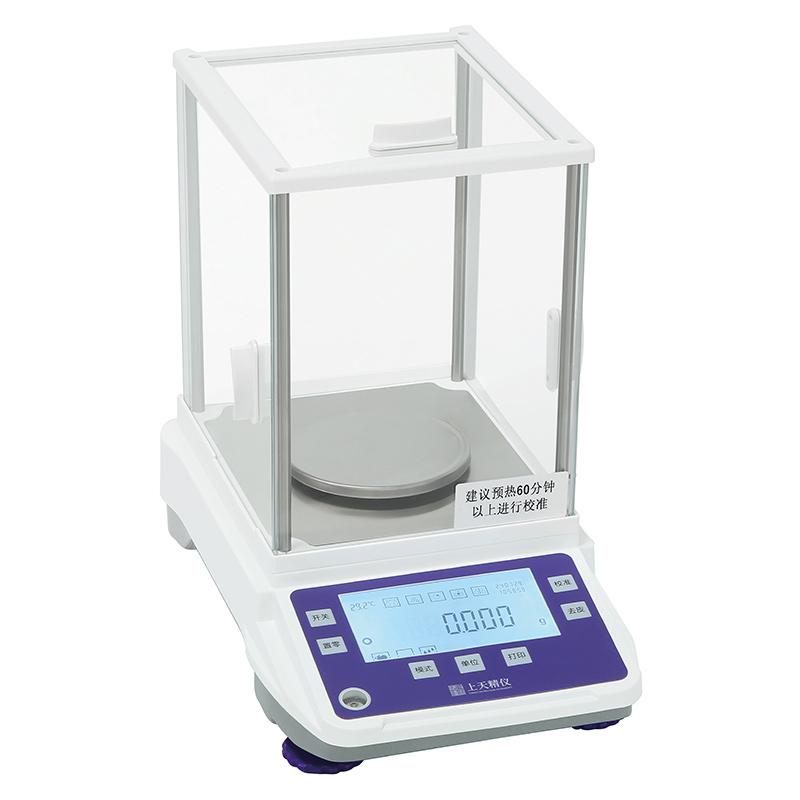

The JA1003 Electronic Balance is a High Accuracy weighing instrument featuring a new generation of Electromagnetic Force Sensor technology with 1mg readability accuracy and 100g Capacity. The product features an oversized backlit LCD display, supports a variety of weighing units, and comes standard with an RS232 interface to meet the precise weighing needs of laboratory and industrial environments.
Features
1. Adopt New Generation High Accuracy, High Resolution Electromagnetic Force Sensor to Provide Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance works based on the electromagnetic force Sensor technology, and realizes accurate weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the gravity of the item, and eliminates the influence of Ambient Temperature changes on the measurement results through dynamic temperature compensation technology to ensure weighing accuracy.
Applications
Laboratories, industrial weighing, quality control, scientific research institutions, educational institutions
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter (input 110-240V, output 12V 1A)
3. Turn it on to warm up and wait for stability.
4. Externally calibrated (if required)
5. Place items to be weighed on the pan
6. Read the weighing results on the LCD display
7. Data can be transferred to the computer through the RS232 interface
Notice
• Ambient Temperature should be kept within 10~ 30 ℃
• Avoid use in strong airflow or vibration environment
• Balance level before weighing
Periodically calibrated to ensure accuracy
• Do not exceed 100g Capacity Limit
• Please use a soft dry cloth when cleaning to avoid liquids entering the inside of the instrument
