Overview

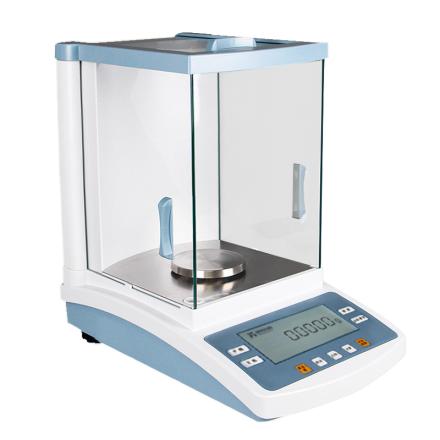

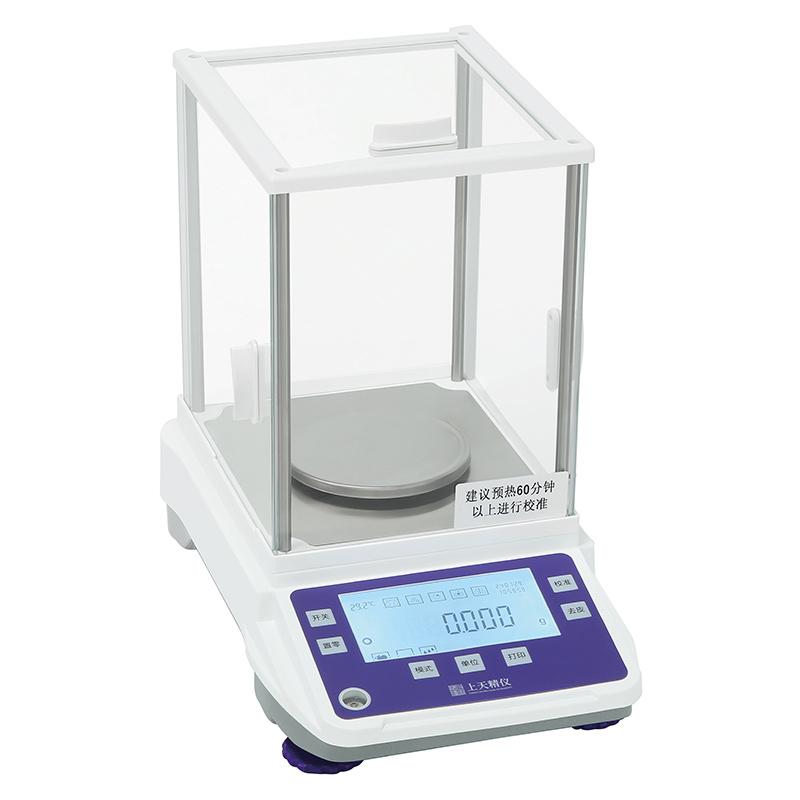

Shangtian Jingyi JA4003 One thousandth Electronic Balance is a High Accuracy weighing equipment with a Capacity of 400g and a readability accuracy of 1mg. It adopts a new generation of electromagnetic force Sensor and dynamic temperature compensation technology to ensure stable and reliable weighing results, suitable for laboratories, industries and other scenarios.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. External calibrating function to ensure long-term accuracy
5. The weighing stability time and reaction speed are adjustable, and the reaction time is less than 3 seconds
6. Various weighing units: mg, g, ct, oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Wide voltage power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance is based on Electromagnetic Force Sensor technology, which realizes accurate weighing through the principle of electromagnetic force equilibrating. When the object is placed on the pan, the Sensor generates electromagnetic force to equilibrate the object gravity, and automatically adjusts the impact of Ambient Temperature changes on measurement through dynamic temperature compensation technology to ensure the accuracy and stability of weighing results.
Applications
Laboratory, industrial, pharmaceutical, chemical, educational, food, jewelry weighing
Steps
1. Balance on a smooth, vibration-free surface
2. Connect Power Adapter, input voltage 110-240V
3. Boot preheating to ensure that the operating temperature is within the range of 10~ 30 ° C
4. Select the weighing unit (e.g. mg, g, etc.) as required.
5. Place the item to be weighed on the pan and wait for the stable display (reaction time < 3 seconds)
6. Read and record the weighing results, and optionally use the RS232 interface to transfer data
7. Shut down after use and clean the pan
Notice
Balance is placed on a horizontal, stable surface to avoid vibration interference
• Ambient Temperature should be maintained between 10 and 30 ° C to ensure accuracy
Periodically calibrated to maintain accuracy
• Avoid overload, Capacity does not exceed 400g
• Clean the pan in time after use to prevent residues from affecting the measurement
• Power Adapter input is 110-240V to ensure voltage matching
• Pay attention to shock-proof during transportation and storage, net weight 5.8kg, gross weight 8.6kg
