Overview

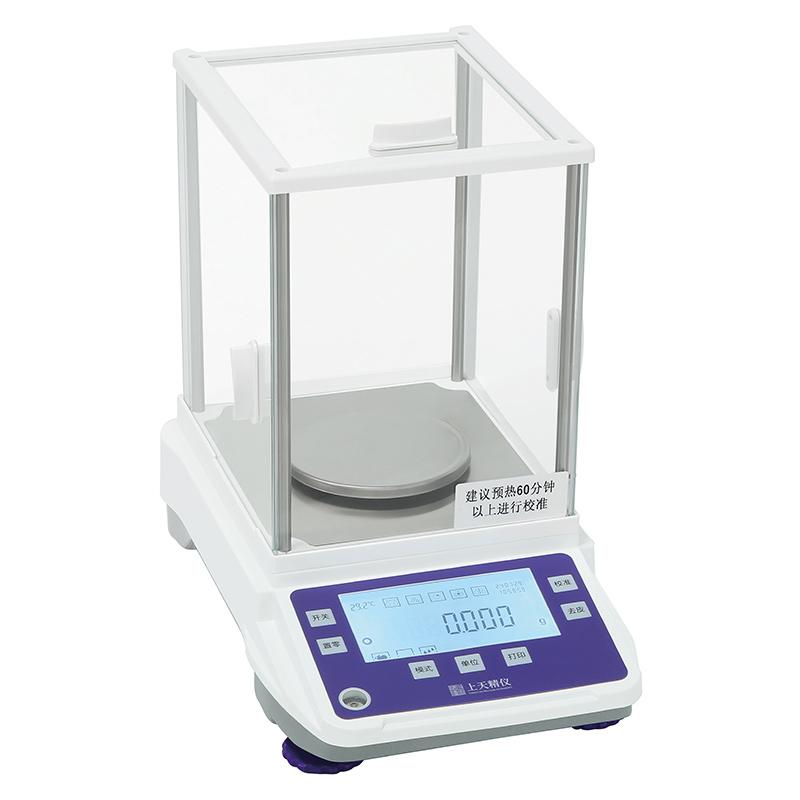

Shangtian Jingyi JA6003 Precision Balance (0.001 g) is a High Accuracy weighing equipment with Capacity 600g and readability accuracy 1mg. It is suitable for laboratories, industries and other occasions that require accurate measurement. Using a new generation of electromagnetic force Sensor and dynamic temperature compensation technology ensures stable and reliable weighing results.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance uses electromagnetic force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. Dynamic temperature compensation technology automatically adjusts errors caused by temperature changes to ensure measurement accuracy. The external calibrate function allows users to calibrate according to the standard weight to ensure long-term use accuracy.
Applications
Laboratory, industrial weighing, quality control, R & D, education, pharmaceuticals, chemicals, food, jewelry
Steps
1. Balance on a smooth, vibration-free surface
2. Connect Power Adapter, input voltage 110-240V
3. Boot preheating to ensure that the operating temperature is within the range of 10~ 30 ° C
4. Select the weighing unit (e.g. mg, g, etc.) as required.
5. Place the sample on the pan for weighing
6. Use peeling function to remove container weight
7. Optional connection to computer to transmit data through RS232 interface
8. Shut down and disconnect the power
Notice
• Ensure that the Working Ambient Temperature is within the range of 10~ 30 ℃
• Avoid use in areas with vibration or unstable airflow
Periodically calibrated to ensure accuracy
• Use the adapter to specify the input voltage 110-240V
• Keep the pan clean and avoid overloading (up to 600g)
• Pay attention to shock and moisture protection during transportation and storage
