Overview

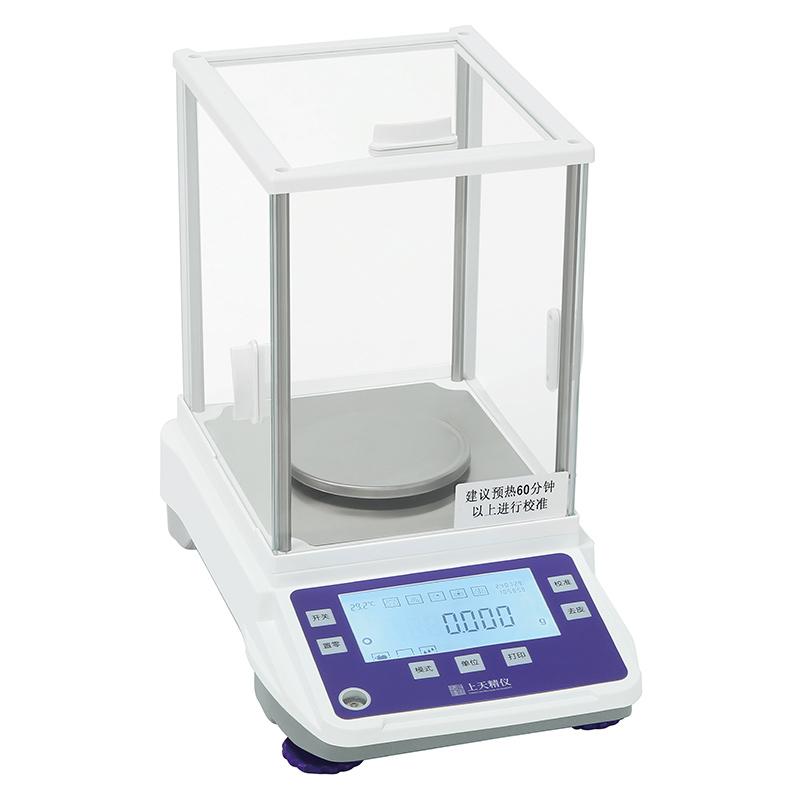

JA10003 Electronic Balance is a High Accuracy weighing device with Capacity 1000g and readability accuracy 1mg. It adopts a new generation of electromagnetic force Sensor and dynamic temperature compensation technology to ensure stable and reliable weighing. Equipped with an oversized backlit high definition LCD display, it supports a variety of unit switching and external calibrating functions, suitable for laboratories, industries and other scenarios.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Dynamic temperature compensation technology to ensure the accuracy of weighing
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 3S.
6. Various weighing units: mg/g/ct/oz, etc
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Built-in date and time display function to meet traceability and compliance requirements
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Electronic Balance is based on Electromagnetic Force Sensor technology and achieves accurate weighing through the principle of electromagnetic force equilibrating. When an object is placed on a pan, the Sensor generates electromagnetic force to equilibrate the object's gravity, and automatically adjusts the impact of Ambient Temperature changes through dynamic temperature compensation technology to ensure the accuracy of weighing results.
Applications
Laboratory, industrial weighing, quality control, scientific research and education, pharmaceutical, chemical industry
Steps
1. Place the Balance on a smooth table and connect the Power Adapter
2. Turn on the power switch and wait for the system initialization to complete.
3. Select the weighing unit as needed (mg/g/ct/oz, etc.)
4. Place items to be weighed gently in the center of the pan
5. Read the weighing result after waiting for the display to be stable.
6. Use the peeling function to deduct the weight of the container
7. Optional connection to computer to transmit data through RS232 interface
Notice
• Please place the Balance on a stable, vibration-free countertop for use
• Avoid operating in environments with drastic temperature changes or strong airflow
• Preheat the equipment before weighing to ensure accuracy
• Do not exceed Capacity 1000g to prevent damage to Sensor
Periodic external calibrating to maintain accuracy
• Use a soft cloth when cleaning to avoid liquids from entering the equipment
• The operation temperature range is 10~ 30 ℃, please use it in a suitable environment
