Overview

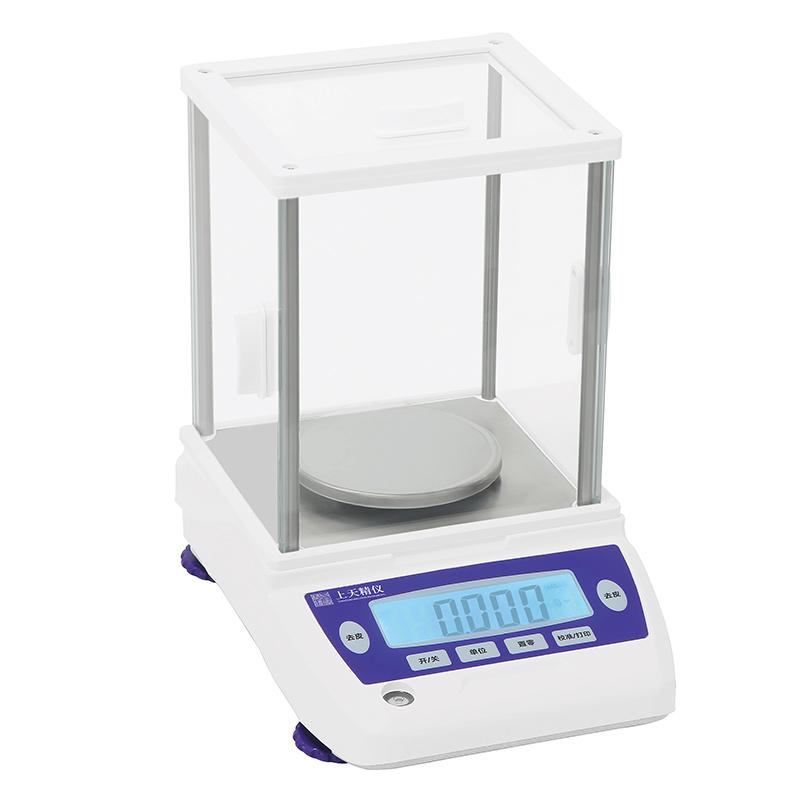

Shangtian Jingyi JY3003 Precision Balance (0.001 g) is a High Accuracy weighing equipment with a Capacity range of 300g and a readability accuracy of 1mg. It is suitable for laboratories, industries and other occasions that require accurate weighing. The product adopts a new generation of High Accuracy Sensor and backlit high definition LCD LCD display to ensure stable, reliable and clear weighing results.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Fully automatic fault detection and overload protection
5. Support a variety of weighing units, including g, kg, ct, oz, etc
6. Power Adapter supports 110V-240V, 50Hz/60Hz input
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Optional functions include dynamic weighing, USB storage, battery, printer, second display screen, lower hook, weight check alarm light, etc
Principle
The Electronic Balance detects the weight of the weighed object through the High Accuracy Sensor and converts the signal into a digital display on the LCD screen. It uses a fully automatic fault detection mechanism to ensure that the equipment is automatically protected in the event of overload or Miscellaneous abnormalities, providing accurate weighing data.
Applications
Laboratory, industry, scientific research, education, medical care, pharmacy, food, chemical industry
Steps
1. Place the Balance on a smooth surface and connect the Power Adapter
2. Turn on the power switch and wait for the Balance self-test to complete.
3. Place the object to be weighed on the pan to ensure no overload
4. Read the weight data displayed on the LCD screen
5. Use peel function for net weight measurement (optional)
6. Transfer data via RS232 interface or optional function (if applicable)
7. Turn off the power after use and clean the pan
Notice
• Do not overload, Capacity range is 300g
• Ensure that the Working Ambient Temperature is within the range of 10~ 30 ℃
• Clean the stainless steel pan in time after use to avoid corrosion
Avoid operating in a strong electromagnetic interference environment
Periodically calibrated to ensure accuracy
• Power Adapter input voltage needs to match 110-240V, 50/60Hz
• Optional functions require additional configuration, non-standard equipment
