Overview

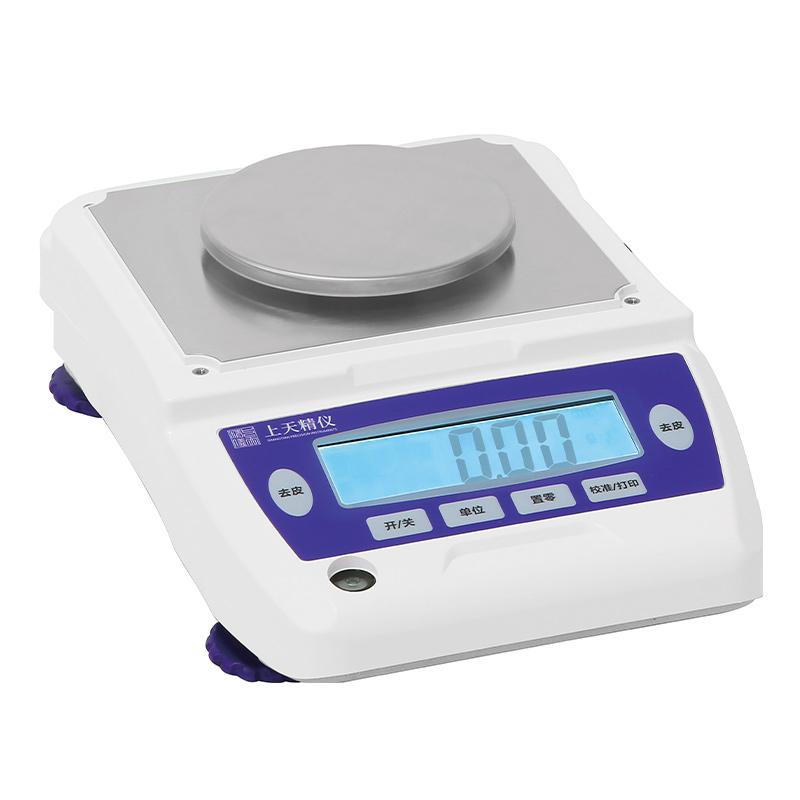

JA1202 One Percent Electronic Balance is a High Accuracy weighing device of Shangtian Jingyi brand. It adopts a new generation of Sensor technology to provide stable and reliable weighing results, suitable for laboratory, industrial and other scenarios.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance is based on High Accuracy Sensor technology, which senses the weight of an object and converts it into an electrical signal. After internal processing, the result is clearly displayed on the LCD display, and external calibration is supported to ensure accuracy.
Applications
Laboratory, industrial weighing, quality control, education and research
Steps
1. Balance on a smooth surface and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V1A)
3. Turn it on to warm up and wait for stability.
4. Externally calibrated (if required)
5. Place the sample for weighing and read the LCD display result
6. Optional use of RS232 interface to transfer data to PC or Excel
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme temperatures
• Ensure that the pan is clean to avoid affecting the weighing accuracy
• Check the horizontal bubble before use to ensure that the Balance is placed horizontally
• Power Adapter input voltage needs to match 110-240V range
• Optional accessories such as Draft Shield need to be configured according to actual needs
