Overview

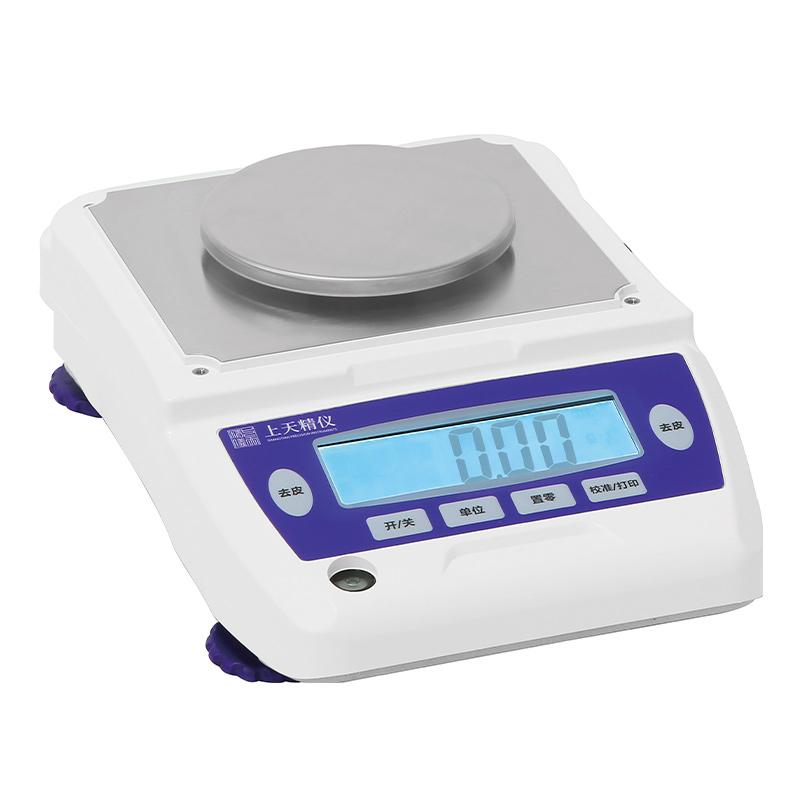

Shangtian Jingyi JA2202 One Percent Electronic Balance is a High Accuracy weighing device with Capacity 220g and readability accuracy 0.01g. It adopts a new generation of High Accuracy Sensor to ensure stable and reliable weighing results. Equipped with backlit high definition LCD LCD display, the display is clear and intuitive, suitable for laboratories, industries and other environments.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance is based on High Accuracy Sensor technology, which senses the pressure of the weighing object on the pan, converts the signal into an electrical signal and processes it, and finally displays the exact weight value on the LCD display. The external calibrating function ensures accuracy in long-term use.
Applications
Laboratory, industrial weighing, quality control, education and research, jewelry weighing, pharmaceutical industry
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter, input voltage 110-240V
3. Turn it on and warm up, and choose the weighing unit as needed
4. Place the item to be weighed on the pan and wait for the stable weight display
5. Use peel function for net weight measurement
6. Optional RS232 interface to connect to computer to transmit data
Notice
• Ensure that the Working Ambient Temperature is within the range of 10~ 30 ℃
• Avoid use in strong wind or vibration environments, optional Draft Shield
Periodic external calibrating to maintain accuracy
• Use the adapter to specify the power input to avoid voltage instability
• Do not use corrosive solvents when cleaning, keep the pan drying
