Overview

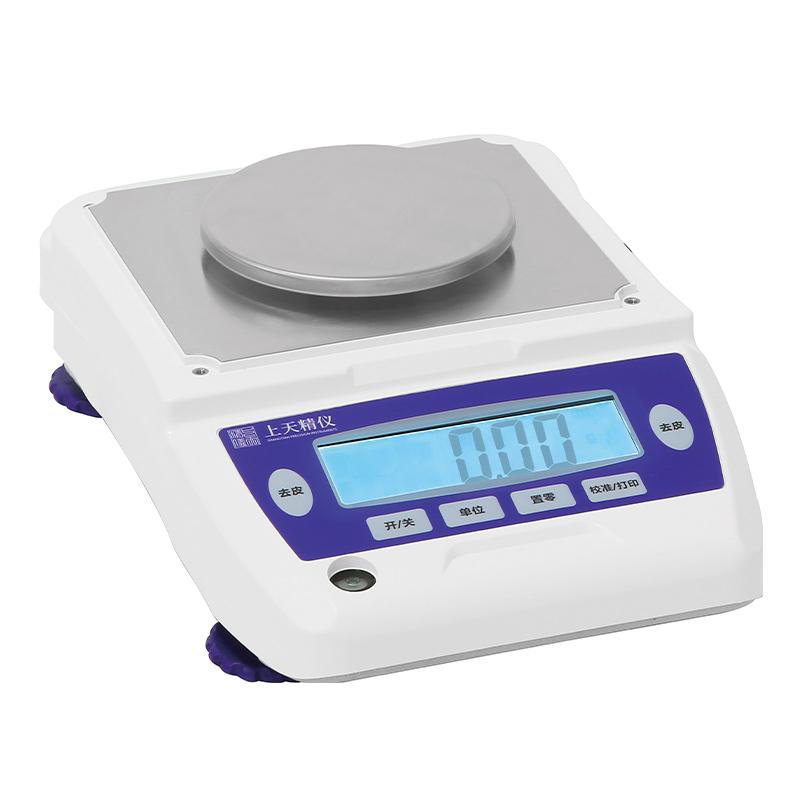

Shangtian Jingyi JA3202 One Percent Electronic Balance is a High Accuracy weighing equipment, Capacity 320g, readability accuracy 0.01g, using a new generation of Sensor technology to ensure stable and reliable weighing. Equipped with a backlit high definition LCD display, it supports a variety of weighing units and external calibrating functions, suitable for precision weighing occasions such as laboratories and industries.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Support external calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power Adapter supports 110V-240V, 50Hz/60Hz wide voltage input
9. Optional expansion functions such as dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, weight check alarm light, etc
Principle
The Electronic Balance senses the weight of the measured object through the High Accuracy Sensor, converts the weight signal into an electrical signal, and clearly displays the weighing result on the LCD display after processing by the internal processor. Support external calibrating to ensure measurement accuracy, and a variety of adjustable parameters to meet different application needs.
Applications
Laboratory, industrial weighing, jewelry weighing, drug weighing, food testing, education and research
Standards
The product information does not mention specific compliance standards
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Turn on the Power Adapter and turn it on to warm up.
3. External calibrating operation as required
4. Place the item to be tested in the center of the pan
5. Read the weighing result on the display screen after waiting for stabilization
6. Data can be transferred by connecting to a computer through the RS232 interface
Notice
• Please place the Balance on a stable, vibration-free countertop for use
• Be sure to adjust it to a horizontal state through a horizontal bubble before use
• Ambient Temperature should be kept within 10~ 30 ℃
• Avoid use in strong electromagnetic interference environments
Periodic external calibrating to ensure measurement accuracy
• Please use a soft cloth to wipe when cleaning to avoid liquid entering the inside of the device
• Disconnect the power supply when not in use for a long time
