Overview

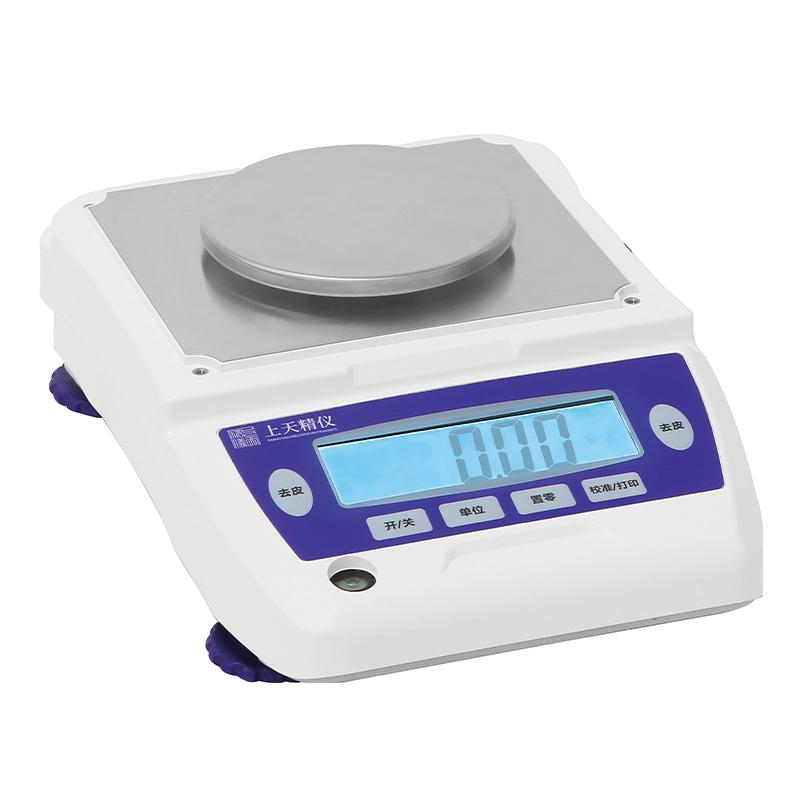

Shangtian Jingyi JA5202 One Percent Electronic Balance is a High Accuracy weighing device with Capacity 520g and readability accuracy 0.01g. It adopts a new generation of Sensor technology to ensure stable and reliable weighing. Equipped with a backlit high definition LCD display, it supports a variety of weighing units and external calibrating functions.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power Adapter supports 110V-240V, 50Hz/60Hz wide voltage input
9. Optional functions such as dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance detects the weight of the object through the High Accuracy Sensor, converts the weight signal into an electrical signal, and clearly displays the weighing result through the LCD display after being processed by the internal processor. External calibrating is supported to ensure weighing accuracy, and the response time is less than 2 seconds.
Applications
Laboratory, industrial weighing, jewelry weighing, drug weighing, food testing, education and research
Standards
Specific standards not mentioned in the product literature
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Turn on the Power Adapter, power input 110V-240V
3. Turn it on and warm up and wait for the display screen to stabilize.
4. If you need to calibrate, use the external calibrate function to calibrate
5. Place the item to be weighed on the pan and read the weight data on the display
6. You can connect to a computer through the RS232 interface and use the PC-STWC function to export data to Excel.
Notice
• The operation temperature range is 10~ 30 ℃, please use it within this temperature range
• Ensure that the Power Adapter input voltage is within the range of 110V-240V
• The horizontal bubble must be adjusted to a horizontal state before weighing
• Avoid use in strong airflow environments, optional Draft Shield if required
• Periodic external calibrating to ensure weighing accuracy
Capacity 520g to avoid damage to the Sensor
