Overview

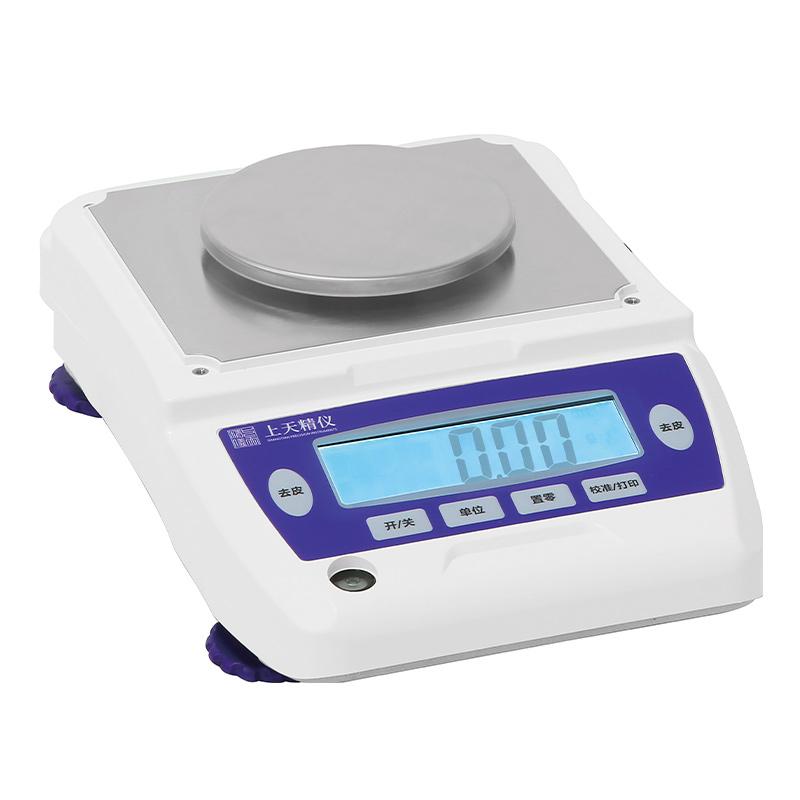

Shangtian Jingyi JA6202 One Percent Electronic Balance is a High Accuracy weighing device with Capacity 620g and readability accuracy 0.01g. It adopts a new generation of Sensor technology, is equipped with a backlit high definition LCD display, supports a variety of weighing units and external calibrating functions, and is suitable for precision weighing needs in laboratories, industries and other fields.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power Adapter supports 110V-240V, 50Hz/60Hz wide voltage input
9. Optional expansion functions such as dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, weight check alarm light, etc
Principle
Electronic Balance converts the weight of the object into an electrical signal through the High Accuracy Sensor. After analysis and processing by the internal processor, the weighing result is visually displayed on the LCD display. Support for external calibrating ensures measurement accuracy, and the reaction time is less than 2 seconds, providing fast and stable weighing performance.
Applications
Laboratory, industrial manufacturing, quality control, scientific research and education, jewelry weighing, pharmaceutical preparation
Standards
The product information does not mention specific compliance standards
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Turn on the Power Adapter and turn it on to warm up.
3. Select the weighing unit as needed (mg/g/ct/oz, etc.)
4. Externally calibrated operation
5. Place the item to be weighed on the pan and read the display result
6. Optional RS232 interface to connect to a computer or use PC-STWC function to transmit data
Notice
• Ambient Temperature should be kept within 10~ 30 ℃
• Ensure Balance is placed on a smooth and vibration-free work surface
• Adjust the horizontal bubble before use to ensure the level of the equipment
Periodic external calibration to ensure measurement accuracy
• Avoid use in strong electromagnetic interference environments
• Please use a soft dry cloth when cleaning to avoid liquids entering the equipment
