Overview

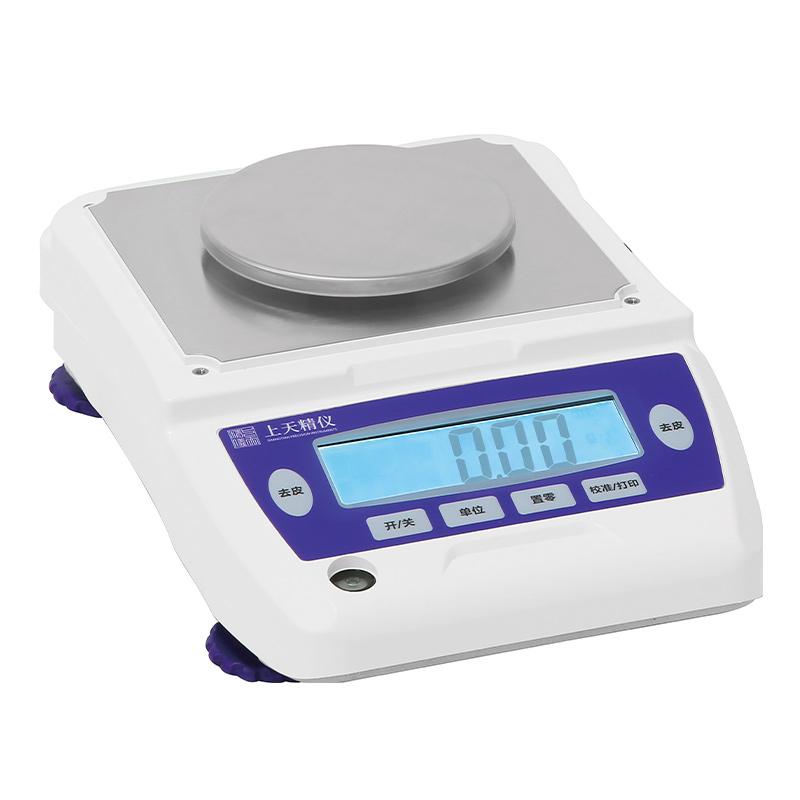

Shangtian Jingyi JA10002 One Percent Electronic Balance is a High Accuracy weighing device, Capacity 1000g, readability accuracy 0.01g, using a new generation of High Accuracy Sensor to ensure stable and reliable weighing results. Equipped with backlit high definition LCD LCD LCD display, clear display, support for a variety of weighing units and external calibrating functions.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance detects the weight signal through the High Accuracy Sensor, which is clearly displayed on the LCD display after internal processing. It supports external calibrating to ensure accuracy, fast response time, and can adjust the weighing stabilization time to suit different application needs.
Applications
Laboratory, industrial weighing, quality control, education and research, jewelry weighing, pharmaceutical industry
Steps
1. Place the Balance on the horizontal countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V1A)
3. Turn it on to warm up and wait for stability.
4. Externally calibrated (if required)
5. Place the sample for weighing
6. Read the results on the LCD display
7. Optional data transfer to computer via RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme temperatures
• Ensure that the Power Adapter input voltage matches the local standard (110-240V)
• Check the horizontal bubble before weighing to make sure the Balance is level
• Avoid overloading, Capacity 1000g
Periodic external calibrating to maintain accuracy
• Optional accessories such as Draft Shield need to be configured according to actual needs
