Overview

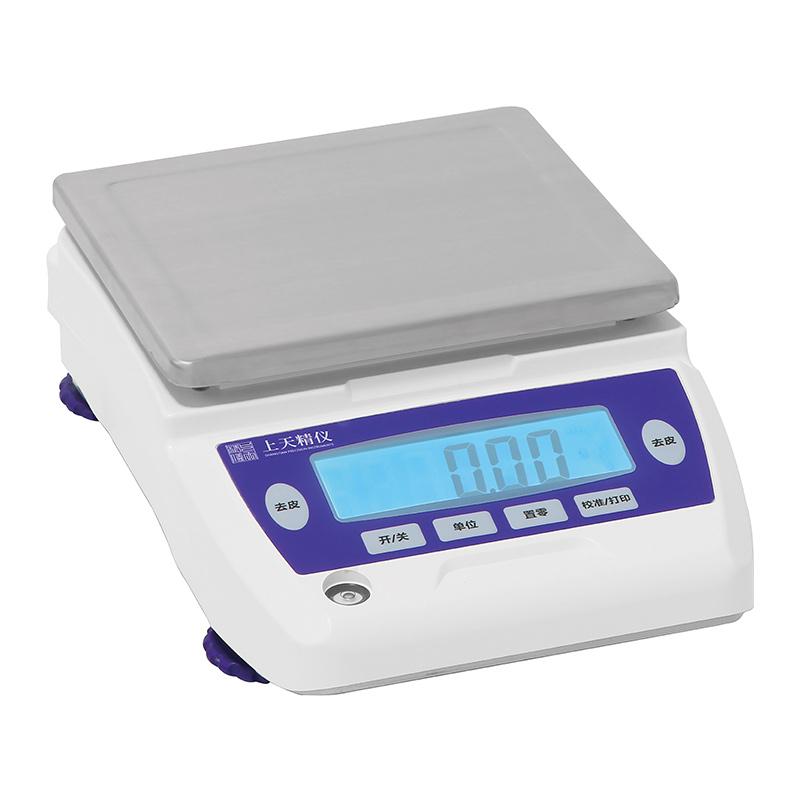

Shangtian Jingyi JA12002 One percent Electronic Balance is a High Accuracy weighing equipment, Capacity 1200g, readability accuracy 0.01g. It adopts a new generation of High Accuracy Sensor to ensure stable and reliable weighing results. Equipped with backlit high definition LCD LCD display, clear display and easy operation.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
Electronic Balance detects weight signals through the High Accuracy Sensor, converts them into electrical signals, and displays them on the LCD screen. External calibrating functions ensure weighing accuracy, and multiple unit conversions and interfaces support data output.
Steps
1. Balance on a smooth surface and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V 50/60Hz, output 12V1A)
3. Turn it on and warm up, and choose the weighing unit as needed
4. Externally calibrated to ensure accuracy
5. Place the sample for weighing and read the LCD display result
6. Optional use of RS232 interface to transfer data to PC or Excel
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme temperatures
• Power frequency in 110V-240V range, adapter output is 12V1A
• Check the horizontal bubble before weighing to ensure that the Balance is placed horizontally
Periodic external calibrating to maintain accuracy
• Avoid overloading, Capacity 1200g
• Optional features require additional configuration, such as Draft Shield, printer, etc
