Overview

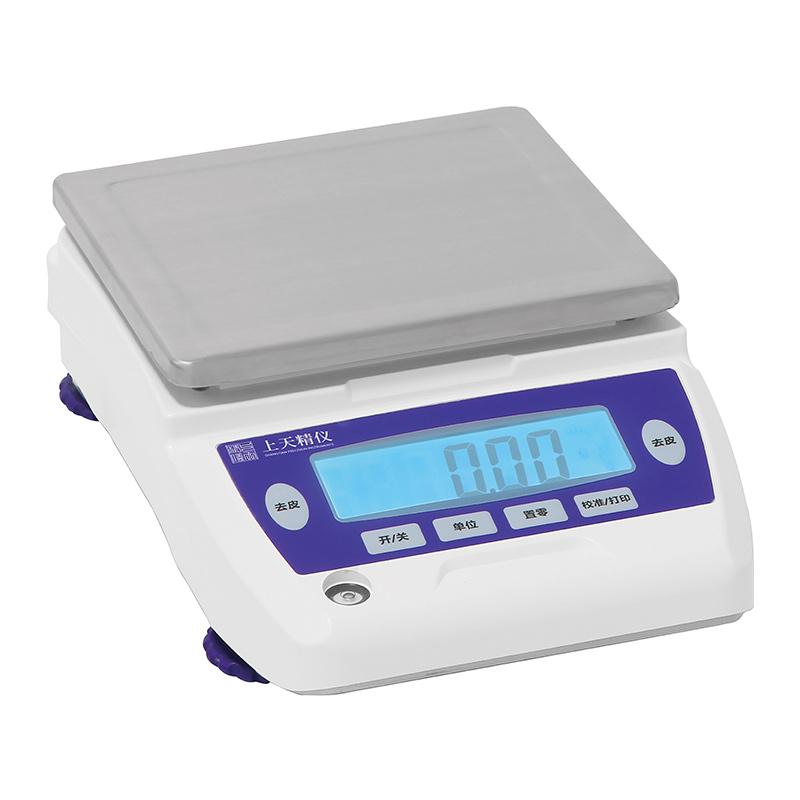

Shangtian Jingyi JA22002 One Percent Electronic Balance is a High Accuracy weighing device with Capacity 2200g and readability accuracy 0.01g. It adopts a new generation of Sensor technology to provide stable and reliable weighing results, suitable for various weighing scenarios such as laboratories and industries.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance detects the weight of the weighing object through the High Accuracy Sensor, converts the signal into a digital display on the LCD screen. External calibrating technology is used to ensure weighing accuracy, and data output and transmission are realized through the RS232 interface.
Applications
Laboratory, industry, scientific research, education, pharmaceuticals, food, chemicals, jewelry
Standards
The product information does not mention relevant standards
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V 50/60Hz)
3. Turn it on to warm up and wait for stability.
4. Externally calibrated (if required)
5. Place items to be weighed on the pan
6. Read the weighing results on the LCD display
7. Data can be transferred by connecting to a computer through the RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃, please use it within this temperature range
• Ensure that the Power Adapter input voltage is within the range of 110-240V
• Adjust the horizontal bubble before weighing to ensure Balance level
• Avoid use in strong electromagnetic interference environments
• Periodic external calibrating to ensure weighing accuracy
• Keep the pan clean and avoid contact with corrosive substances
• Handle with care when transporting and moving to avoid violent vibration
