Overview

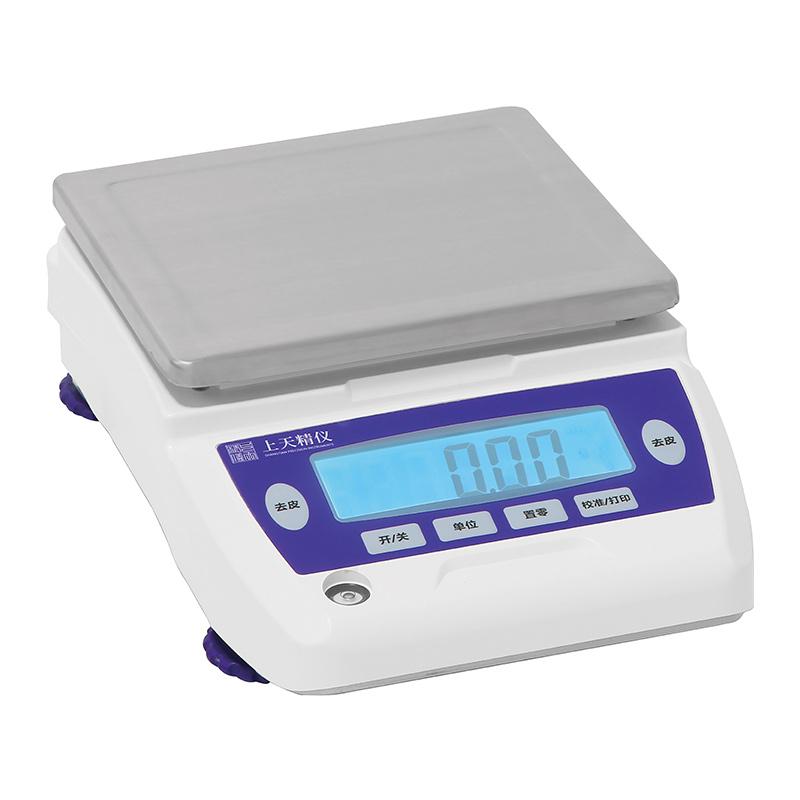

Shangtian Jingyi JA32002 One Percent Electronic Balance is a High Accuracy weighing device, Capacity 3200g, readability accuracy 0.01g. Using a new generation of High Accuracy Sensor, it provides stable and reliable weighing results, suitable for laboratories, industries and other occasions.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance detects the weight signal through the High Accuracy Sensor, converts it into an electrical signal and processes it internally to clearly display the weighing result on the LCD display. It supports external calibrating to ensure accuracy and can transmit data through the RS232 interface.
Applications
Laboratory, industry, scientific research, education, pharmacy, food, chemical industry
Steps
1. Balance on a smooth surface and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V1A)
3. Preheat the machine and calibrate externally after stabilization
4. Place the sample in a pan (size 192x171mm) for weighing
5. Select the weighing unit as required (mg/g/ct/oz, etc.)
6. Use the peeling function (full scale range)
7. Optional data transfer to computer applications via RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃, please ensure that the Ambient Temperature meets the requirements
• Be sure to adjust the horizontal bubble before use to ensure that the Balance is placed horizontally
• Power Adapter input voltage is 110-240V, output is 12V1A, do not use mismatched power supply
• Avoid Capacity 3200g when weighing to prevent damage to the Sensor
• Periodic external calibrating to ensure weighing accuracy
• Optional features need to be configured separately, such as Draft Shield, printer, etc
