Overview

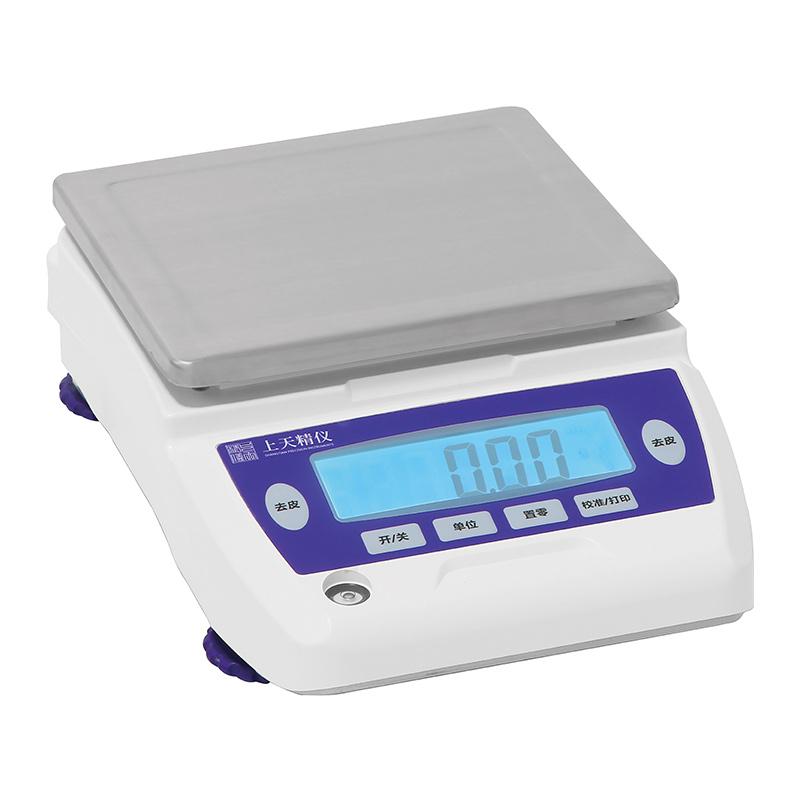

Shangtian Jingyi JA52002 One Percent Electronic Balance is a High Accuracy weighing device with Capacity 5200g and readability accuracy 0.01g. It adopts a new generation of High Accuracy Sensor to provide stable and reliable weighing results, suitable for laboratories, industries and other occasions.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
Electronic Balance detects the weight of the weighed object through the High Accuracy Sensor, converts the signal into a digital display on the LCD screen. External calibrating is used to ensure accuracy, and data transmission is realized through the RS232 interface.
Applications
Laboratory, industry, scientific research, education, pharmacy, food, chemical industry
Steps
1. Place Balance on the horizontal countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V1A)
3. Turn it on to warm up and wait for stability.
4. Externally calibrated (if required)
5. Place the sample for weighing and read the LCD display result
6. Use the peeling function (full scale range)
7. Connect to the computer to transfer data through the RS232 interface (optional)
Notice
• The operation temperature range is 10~ 30 ℃ to ensure that it is used in a suitable environment
• The level must be adjusted before use to avoid weighing errors
• Avoid overloading, Capacity does not exceed 5200g
Periodic external calibrating to maintain accuracy
• Power Adapter input voltage needs to match 110-240V range
• Avoid liquids from entering the equipment when cleaning
• Optional functions require additional configuration, non-standard accessories
