Overview

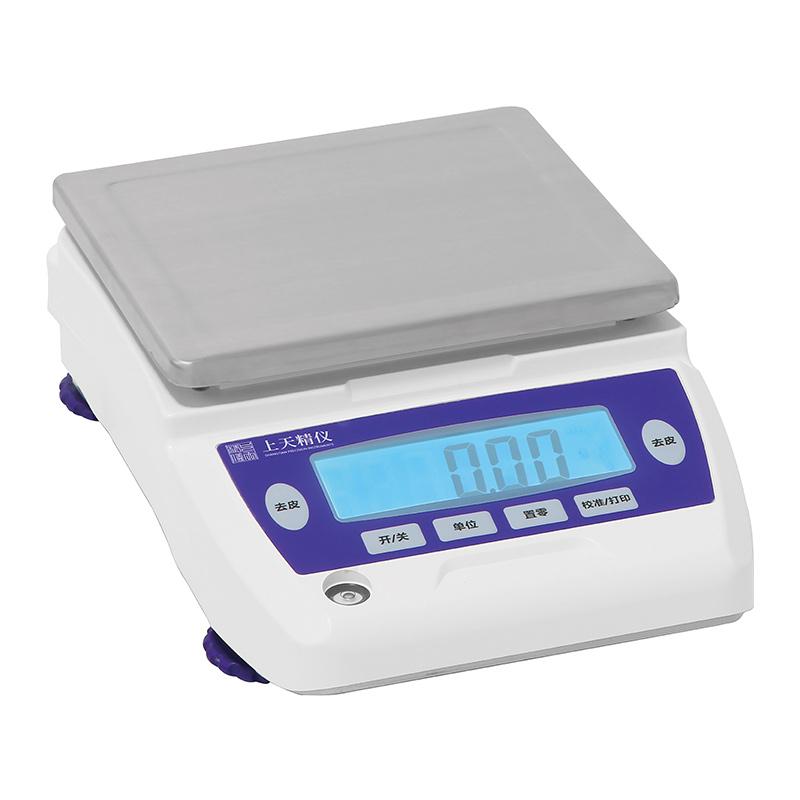

Shangtian Jingyi JA82002 One percent Electronic Balance is a High Accuracy weighing equipment, Capacity 8200g, readability accuracy 0.01g, using a new generation of High Accuracy Sensor to ensure stable and reliable weighing results. Equipped with backlit high definition LCD LCD screen, clear display and easy operation.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
Electronic Balance detects weighted signals through the High Accuracy Sensor, converts them into electrical signals, and displays them on the LCD screen. External calibrations ensure accuracy, and the RS232 interface supports data transmission.
Applications
Laboratory, industrial weighing, quality control, education and research, jewelry weighing, pharmaceutical industry, Food processing
Steps
1. Place Balance on the horizontal countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter, input 110-240V voltage
3. Turn it on to warm up and wait for stability.
4. Externally calibrated (if required)
5. Place the sample for weighing and select the appropriate unit
6. Use the peeling function (full scale)
7. Transfer data via RS232 interface (optional)
Notice
• The operation temperature range is 10~ 30 ℃, avoid exceeding
• Ensure accurate level adjustment before use
• Power Adapter input is 110-240V, output 12V1A, do not misuse
• Avoid overloading, Capacity 8200g
Periodic external calibrating to maintain accuracy
• Power off during cleaning to prevent liquids from entering
