Overview

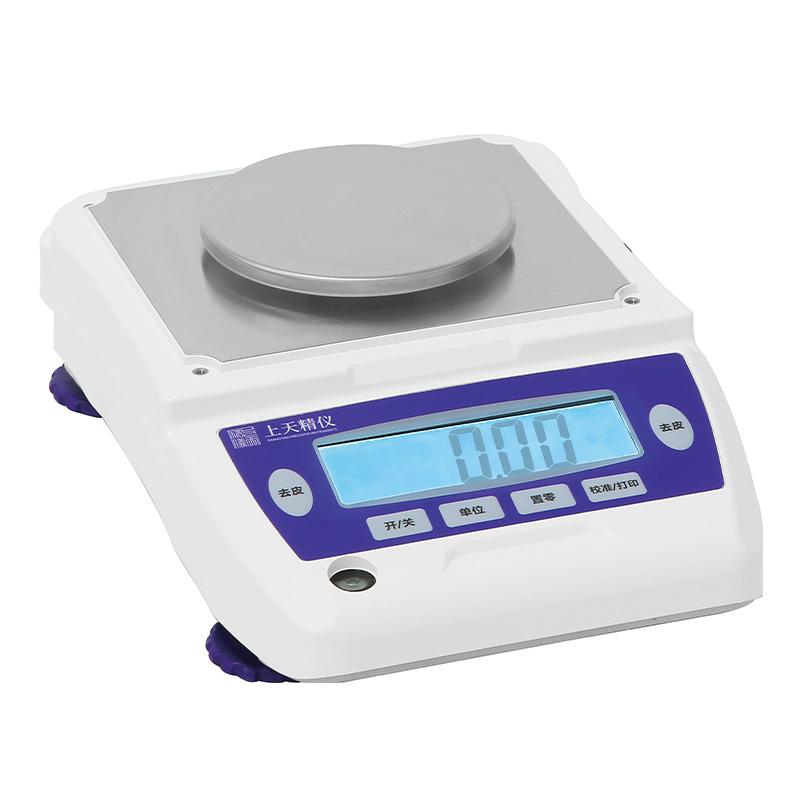

Shangtian Jingyi JA10002C One Percent Electronic Balance is a High Accuracy weighing device with Capacity 1000g and readability accuracy 0.01g. It adopts a new generation of Sensor technology to provide stable and reliable weighing results, suitable for laboratories, industries and other scenarios.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Fully automatic internal calibration triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
Electronic Balance detects the weight signal through the High Accuracy Sensor, which is processed by the internal circuit and converted into a digital display. It has a fully automatic internal calibrating function, which automatically adjusts the accuracy according to time or temperature changes to ensure the accuracy of weighing.
Applications
Laboratory, industrial weighing, quality control, education and research, pharmaceutical, chemical, Food processing
Steps
1. Balance on a smooth surface and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V1A)
3. Turn it on to warm up and wait for stability.
4. Place the sample for weighing, and the LCD display clearly displays the results
5. Use peel function for net weight measurement
6. Optional RS232 interface to connect to computer to transmit data
Notice
• operation temperature range 10~ 30 ℃, avoid extreme environment use
• Ensure that the pan is clean and avoid foreign objects affecting the accuracy
• Check the horizontal bubble before use to ensure that the equipment is placed horizontally
• Power Adapter needs to match the rated voltage 110-240V
• It is recommended to disconnect the power supply if it is not used for a long time
• Optional accessories should be installed and used correctly according to the instructions
