Overview

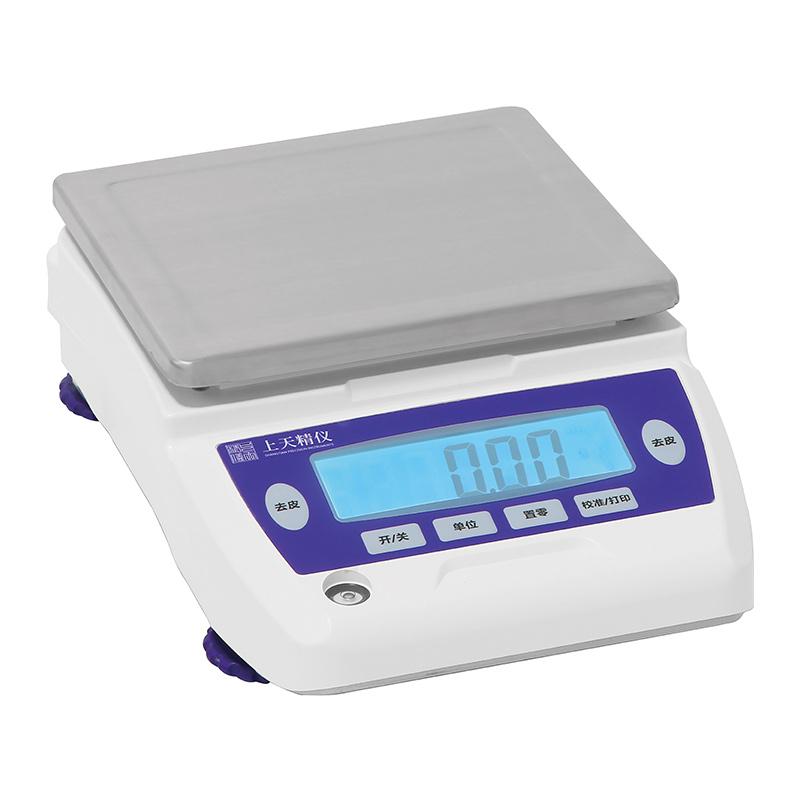

Shangtian Jingyi JA12002C is a one percent Electronic Balance, Capacity 1200g, readability accuracy 0.01g. Using a new generation of High Accuracy Sensor, it provides stable and reliable weighing results, suitable for precision weighing occasions such as laboratories and industries.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Fully automatic internal calibration triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance detects weight changes with a High Accuracy Sensor and converts the signal into a digital display. Fully automatic internal calibrating mechanism triggered by time or temperature ensures weighing accuracy. Multiple unit conversions and data output interfaces are supported.
Applications
Laboratory, industry, scientific research, education, pharmacy, food, chemical industry
Steps
1. Place the Balance on the horizontal countertop and adjust it to the horizontal state through the front horizontal bubble
2. Connect Power Adapter (input 110-240V 50/60Hz, output 12V1A)
3. Turn it on to warm up and wait for stability.
4. Select the weighing unit as required (mg/g/ct/oz, etc.)
5. Place the sample for weighing, and the display screen clearly displays the result.
6. Optional connection to RS232 interface or PC-STWC function to transmit data
7. Turn off and clean the pan after use
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme temperature environment
• Power frequency in 110V-240V range, using the original adapter
• The horizontal bubble must be adjusted to a horizontal state before weighing to ensure accuracy
• Avoid overloading, Capacity does not exceed 1200g
• Periodic internal calibrating to ensure weighing accuracy
• Use a soft cloth when cleaning to avoid liquids from entering the equipment
• Optional functions require additional configuration, choose according to actual needs
